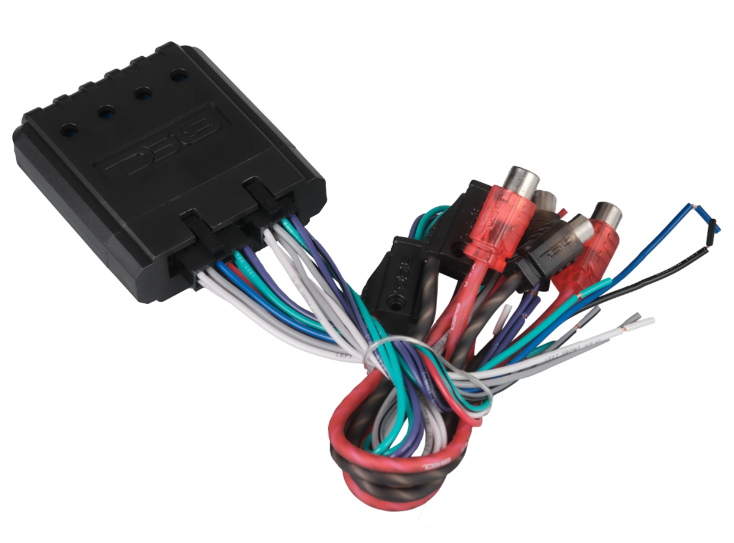

DS18 VX4HL 4 Channel Line Output Converter with Speaker Emulator

Specifications

SKU
VX4HL
Speaker Level Input Channels
4 Channels (FL/FR/RL/RR)
Auto Turn-On
Yes, DC (3V)
Remote Output
Yes, 12v DC 100mA max
Remote Output Short Circuit Protection
Yes, <10 Seconds
Amplifier Outputs
4 Channels RCA (FL/FR/RL/RR)
Level Matching Controls
Yes, (FL/FR/RL/RR)
LED Indicators
No
Housing Material / Color
ABS / Black
Wiring Connector
Dual Molex (12/8pins)
Step-Down Method
Electronic / SMC

Maximum Speaker Level Input
50W RMS
Maximum Preamp Output
3.2V
Nominal Conversion Ratio
4:1
Frequency Response
10Hz-30kHz
Total Harmonic Distortion
0.02% (1kHz)
Input Impedance
45 ohms (Speaker Emulator)
Output Impedance
2K-ohms
S/N Ratio
>100dB
Channel Separation
>60dB
Noise Rejection
>60dB
