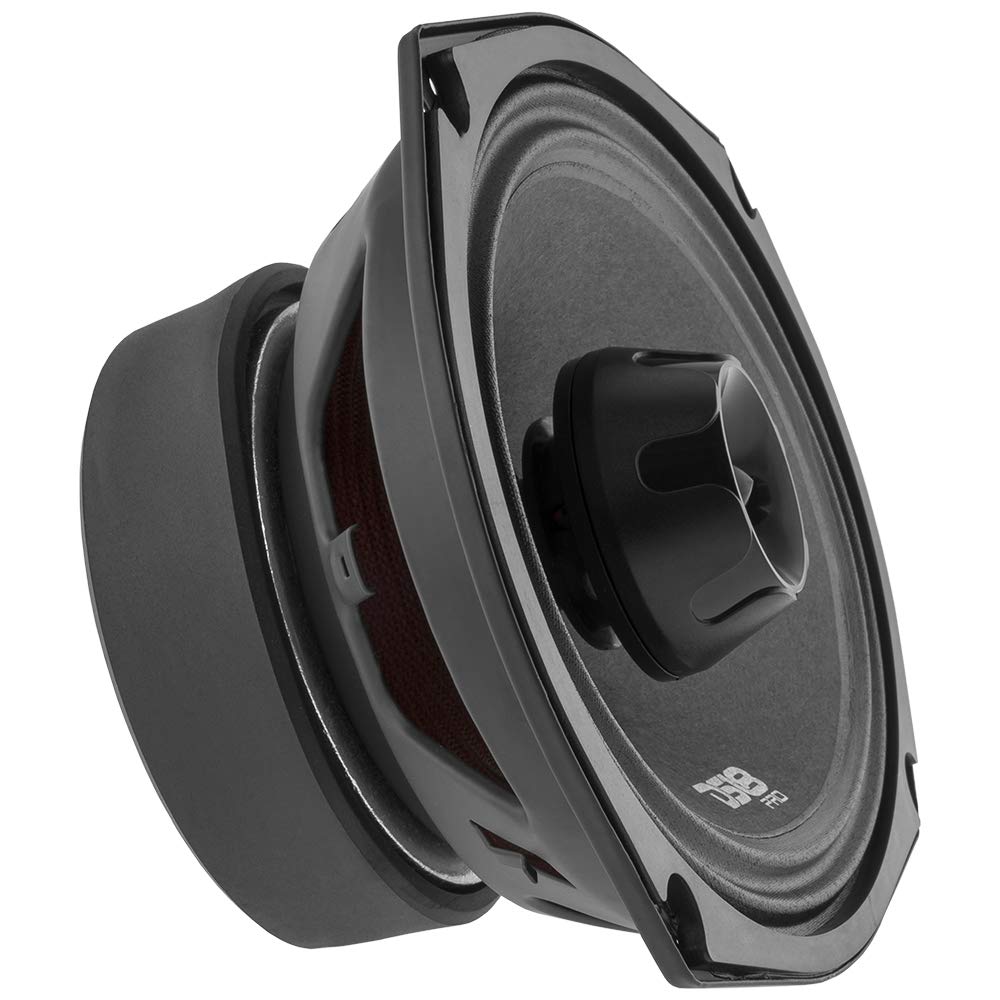

DS18 PRO-ZT6 6.5" 2-Way MidRange LoudSpeaker with Built-in Bullet Tweeter

SOLD INDIVIDUALLY, **GRILL COLOR MAY BE BLACK OR RED DEPENDING ON AVAILABILITY** Please contact us if you have a preference and we will try to accommodate your choice.

Nominal Diameter: 6.5" (1651.1mm)
Nominal Impedance: 4 ohms
RMS Power Handing: 225 Watts
MAX Power Handing: 450 Watts
Sensitivity (1w/1m): 96dB
Frequnecy Response: 65Hz - 22KHz
Recommended Hi Pass Crossover 120Hz
Midrange
Voice Coil Diameter: 1.5" (38.1mm)
Voice Coil Former Material: Kapton
Winding Material: CCAW
Basket Material: Steel
Magnet Weight: 27 oz
Tweeter
Voice Coil Diameter: 1"
Voice Coil Material: Kapton
Winding Material: CCAW
Diaphragm Material: Aluminum Alloy
Magnet Weight: 0.44 oz
Magnet Material: Neodymium
Thiele & Small Parameters
Equivalent Volume / Vas 2.917 LTR
Excursion / Xmax 1.6mm
Free Air Resonance / Fs 150Hz
Mechanical Factor / Qms 3.906
Electrical Factor / Qes 0.747
Total Factor / Qts 0.701
DC Resistance / Re 3.2
Measurements
Overall Diameter: 178mm (7")
Front Mount Baffle Cutout: 144mm (5.67")
Mounting Depth: 77mm (3.03")
Overall Depth: 97mm (3.81)
