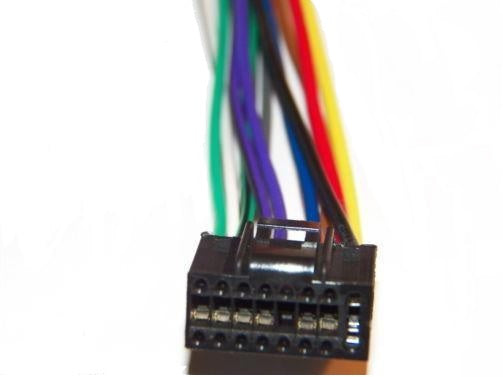

SH508 Wiring Harness JVC 16-000 JVC 16-Pin Harness

SH508 Wiring Harness JVC 16-000 JVC 16-Pin Harness

Regular price $4.99
Regular price Sale price $4.99
Sale Sold out
Shipping calculated at checkout.

SKU:SH 508

General Features:
  • 16-Pin Wiring Harness Plug
  • For use with JVC head units with 16 pin connection
  • Plugs into aftertmarket radio
  • Provides power and 4 speakers
  • Heat resistant for lasting a lifetime
  • Allows installation of aftermarket radio using factory wiring and connector
  • High quality ABS plastic molded connector for the perfect fit
  • Pre-stripped to make installation quick and easy
  • No cutting of factory wiring needed
  • Note: Please measure the plug and count the pins on your radio to ensure you are buying the correct harness
Connections guide:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange – Dash Light Dimmer/Illumination
  • Green – Lt Rear Speaker (+)
  • Green with Black Stripe Lt Rear Speaker (-)
  • White – Lt Front Speaker (+)
  • White with Black Stripe – Lt Front Speaker (-)
  • Purple – Rt Rear Speaker (+)
  • Purple with Black Stripe – Rt Rear Speaker (-)
  • Gray – Rt Front Speaker (+)
  • Gray with Black Stripe – Rt Front Speaker (-)
