General Features:

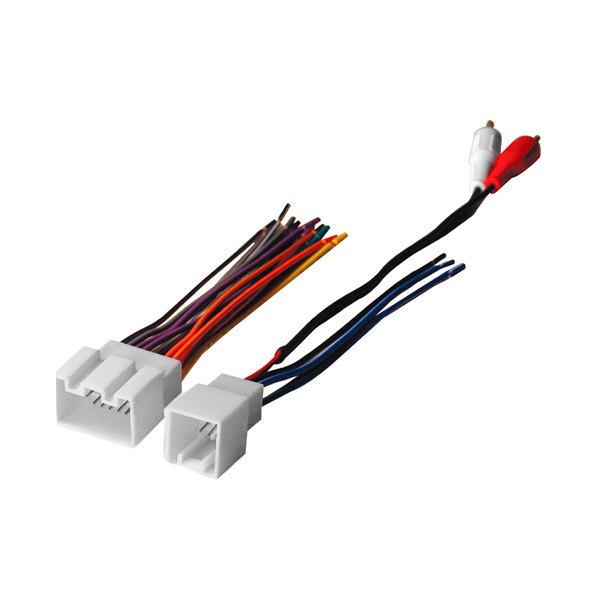

• 16-pin plug & one 8-pin plug Amplifier Interface Harness
• Compatible with Select 1998-2006 Ford/Lincoln/ Mercury vehicles
• Harness is used when installing an aftermarket stereo
• Connects the aftermarket stereo harness to the vehicles factory harness
• No cutting of factory wires is necessary
• Color coded wires allows for a consistent and simplified installation
• Allows installation of aftermarket radio using factory wiring and connector
• High quality, ABS plastic molded connector for the perfect fit
• Can be used to repair a cut-off or damaged wiring harness

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)

Compatibility List:

• Ford:
• 1998-2002 Crown Victoria
• 2001-2004 Escape
• 2000-2004 Excursion
• 1998-2002 Expedition
• 1998-2005 Explorer
• 2000-2006 Explorer Sport Trac
• 1999-2003 F-150
• 1999-2004 F-250 / F-350
• 2001-2003 Mustang
• 2004 Mustang (with factory Mach sound system)
• 2002-2005 Thunderbird
• Lincoln:
• 2003-2005 Aviator
• 2002-2003 Blackwood
• 1998-2002 Continental
• 2000-2006 LS
• 1998-2002 Navigator
• 1998-2002 Town Car
• Mercury:
• 2001-2002 Cougar
• 1998-2002 Grand Marquis
• 1998-2005 Mountaineer
• ​1999-2002 Villager
