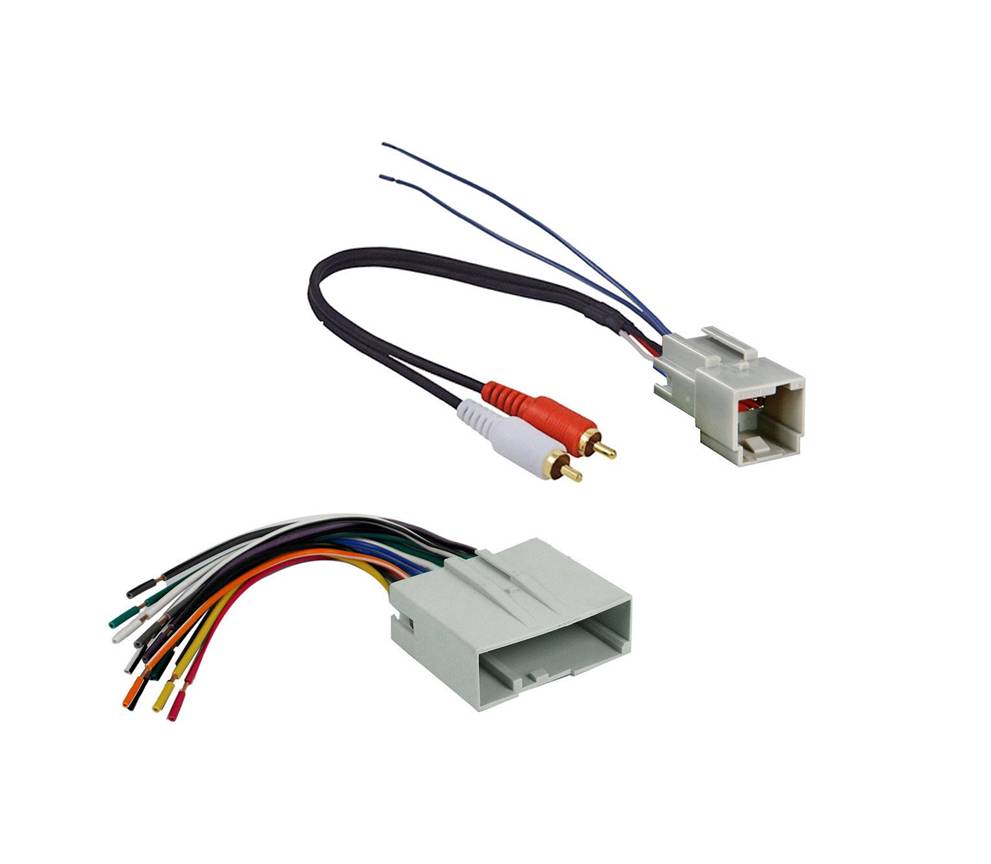

Harness features:

• Amplifier integration harness to plugs to radio harness
• Compatible with Select 2003-up Ford Lincoln Mercury Vehicles
• 2 RCA Plugs plug into aftermarket radio's pre-amp outputs
• One 24-pin power plug and one 8-pin subwoofer plug
• Has standard EIA color code guide on package
• 1.5K Ohm resistor can be used on the amp-remote wire to eliminate turn-on pop
• Allows for the install of an aftermarket radio using the existing factory harness
• No cutting of factory wiring needed
• Same as Metra 70-5521/ Best Kits FWH-694/ Scosche FDK11

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)

Compatibility List:

• Ford:
• 2003 - 2009 Crown Victoria (Does not fit police interceptor models)
• 2005 - 2007 Escape (With factory subwoofer)
• 2005 Excursion
• 2003 - 2013 Expedition (Does not fit early production 2003 models)
• 2006 - 2010 Explorer
• 2004 - 2008 F-150
• 2005 - 2012 F-250 / F-350
• 2005 - 2007 Five Hundred
• 2005 - 2007 Focus
• 2004 - 2007 Freestar
• 2005 - 2007 Freestyle
• 2004 - 2009 Mustang
• 2008 - 2009 Taurus X
• Hyundai:
• 2006 - 2008 Sonata
• Lincoln:
• 2006 - 2008 Mark LT
• 2003 - 2006 Navigator
• ​2003 - 2011 Town Car
• Mercury:
• 2003 - 2010 Grand Marquis
• 2003 - 2006 Marauder
• 2005 - 2007 Mariner
• 2005 - 2008 Montego
• 2004 - 2006 Monterey
• ​2006 - 2010 Mountaineer
