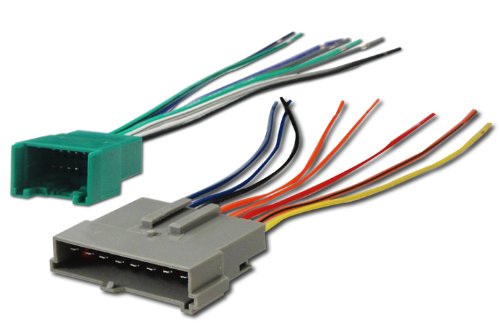

SH405 Wiring Harness Same as FD-1596 / FWH-596 / Metra 70-5600 / Scosche FD08B

XSCORPION FD-1596:

• Female Wire Harness Plugs into Factory Radio
• One 8-pin connector and one 16-pin connector
• Compatible with Select 1985-1998 Ford/ Lincoln/ Mercury
• Plugs into OEM Harness
• Provides power and 4 speakers
• Heat resistant for lasting a lifetime
• Allows installation of aftermarket radio using factory wiring & connector
• High quality ABS plastic molded connector for the perfect fit
• Pre-stripped to make installation quick and easy
• No cutting of factory wiring needed
• Same as Metra 70-5600/ Best Kit FWH-596/ Scosche FD08B

Connections guide:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Lt Rear Speaker (+)
• Green with Black Stripe Lt Rear Speaker (-)
• White – Lt Front Speaker (+)
• White with Black Stripe – Lt Front Speaker (-)
• Purple – Rt Rear Speaker (+)
• Purple with Black Stripe – Rt Rear Speaker (-)
• Gray – Rt Front Speaker (+)
• Gray with Black Stripe – Rt Front Speaker (-)
