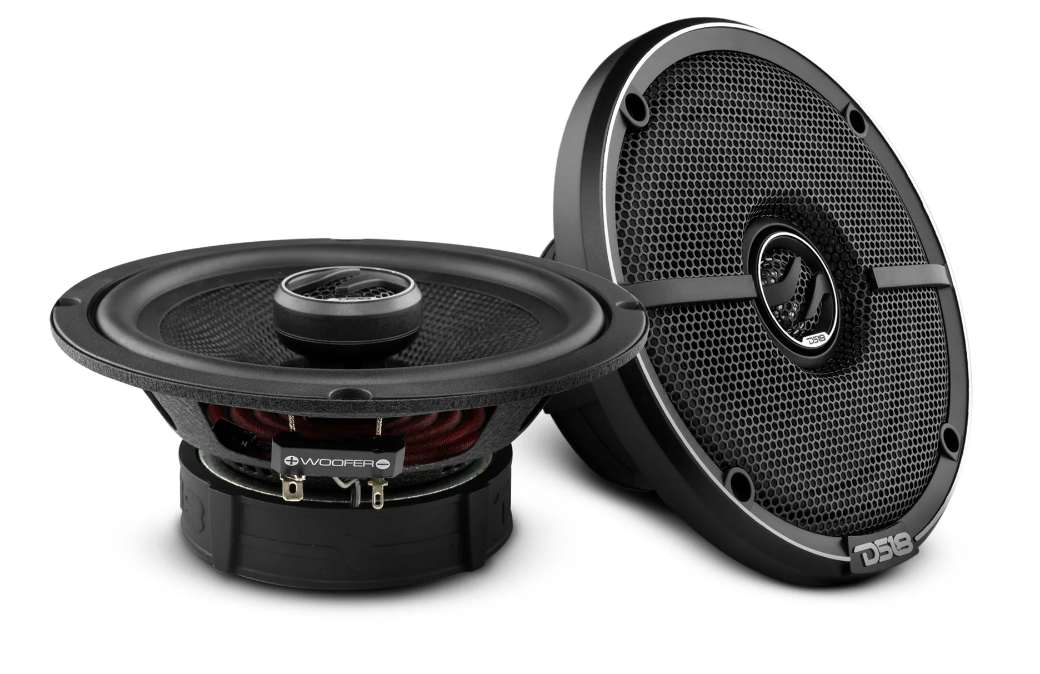

DS18 ZXI-654 6.5" 2-Way Coaxial Car Speakers 240W
DS18 ZXI-654 6.5" 2-Way Coaxial Car Speakers 240W
Regular price
$70.95
Regular price
Sale price
$70.95
Unit price
/
per
Shipping calculated at checkout.
SKU:ZXI-654
Couldn't load pickup availability
- 6.5" inch 2 way 4 ohm speaker requiring 80W RMS and 240W max power handling that gives amazing sound from low to extremely high volume.
- 2-way design will be sure to give you a full range of frequencies for an amazing audio experience to remember.
- Sold in pairs
| SPECIFICATIONS | |
| Nominal Diameter | 6.5” |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 80 Watts |
| MAX Power Handling | 240 Watts |
| Sensitivity (1w/1m) | 89dB |
| Frequency Response | 40Hz - 20KHz |
| Recommended HI Pass Crossover | 60Hz |
| Speaker Type | 2-Way |
| MOTOR | |
| Voice Coil Diameter | 1” / 25.5mm |
| Voice Coil Former Material | KSV |
| Winding Material | EISV |
| Cone Material | Glass fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Barium Ferrite |
| Magnet Weight | 14.46 oz / 410g |
| TWEETER | |
| Nominal Diameter | 1" / 25.4mm |
| Voice Coil Diameter | 0.8" / o20.4mm |
| Voice Coil Former Material | KSV |
| Winding Material | EISVM |
| Diaphragm Material | PEI |
| Magnet Material | Neodymium |
| Magnet Weight | 0.3 oz / 8.5g |
| Equivalent Volume | 10.84L |
| Excursion (one way) | 2.7mm |
| Free Air Resonance | 64Hz |
| Mechanical Factor | 9.44 |
| Electrical Factor | 0.79 |
| Total Factor | 0.73 |
| Mechanical Mass | 13.72g |
| Mechanical Compliance | 444mm/N |
| BL Factor | 5.1 |
| Voice Coil Inductance | 228mH |
| Cone Area | 131cm2 |
| DC Resistance | 3.5 ohm |
| Mechanical Mass w/o air | 12g |
| MEASUREMENTS | |
| Overall Diameter | 6.50” / 165mm |
| Overall Depth | 2.83” / 72mm |
| Front Mount Baffle Cutout | 5.55” / 141mm |
| Mounting Depth | 2.36” / 60mm |
| Motor Diameter | 3.70” / 94mm |
