DS18

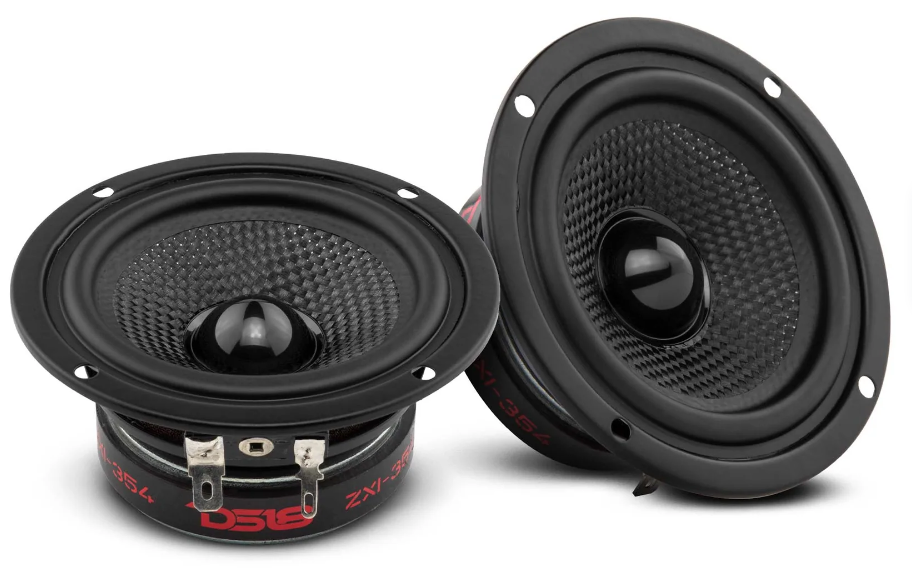

DS18 ZXI-354 3.5" Full Range Car Speakers with Bullet 120W
DS18 ZXI-354 3.5" Full Range Car Speakers with Bullet 120W
Regular price
$49.95
Regular price
Sale price
$49.95
Unit price
/
per
Shipping calculated at checkout.
SKU:ZXI-354
Couldn't load pickup availability
- 3.5" 1- way 4 ohms speaker requiring 40w RMS and 120w Max power handling that gives amazing sound from low to extremely high volume.
- Sold in pairs
| Nominal Diameter | 3.5” |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 40W |
| MAX Power Handling | 120W |
| Sensitivity (1w/1m) | 86dB |
| Frequency Response | 120Hz-20KHz |
| Recommended HI Pass Crossover | 140Hz |
| Midrange: | |
| Voice Coil Diameter | 1” / 25.5mm |
| Voice Coil Former Material | KSV |
| Winding Material | EISV |
| Cone Material | Glass fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material. | Barium Ferrite |
| Magnet Weight | 10.9 oz / 310g |
| Thiele & Small Parameters | |
| Equivalent Volume | 0.55L |
| Excursion (one way) | 1.4mm |
| Free Air Resonance | 140Hz |
| Mechanical Factor | 7.08 |
| Electrical Factor | 1.37 |
| Total Factor | 1.15 |
| Mechanical Mass | 3.2g |
| Mechanical Compliance | 402mm/N |
| BL Factor | 2.938 |
| Cone Area | 32cm2 |
| DC Resistance | 4.2 ohm |
| Mechanical Mass w/o air | 3.0g |
| Measurements | |
| Overall Diameter | 3.50” / 89mm |
| Overall Depth | 1.65” / 42mm |
| Front Mount Baffle Cutout | 2.80” / 71mm |
| Mounting Depth | 1.49” / 37.8mm |
| Motor Diameter | 2.36” / 60mm |
