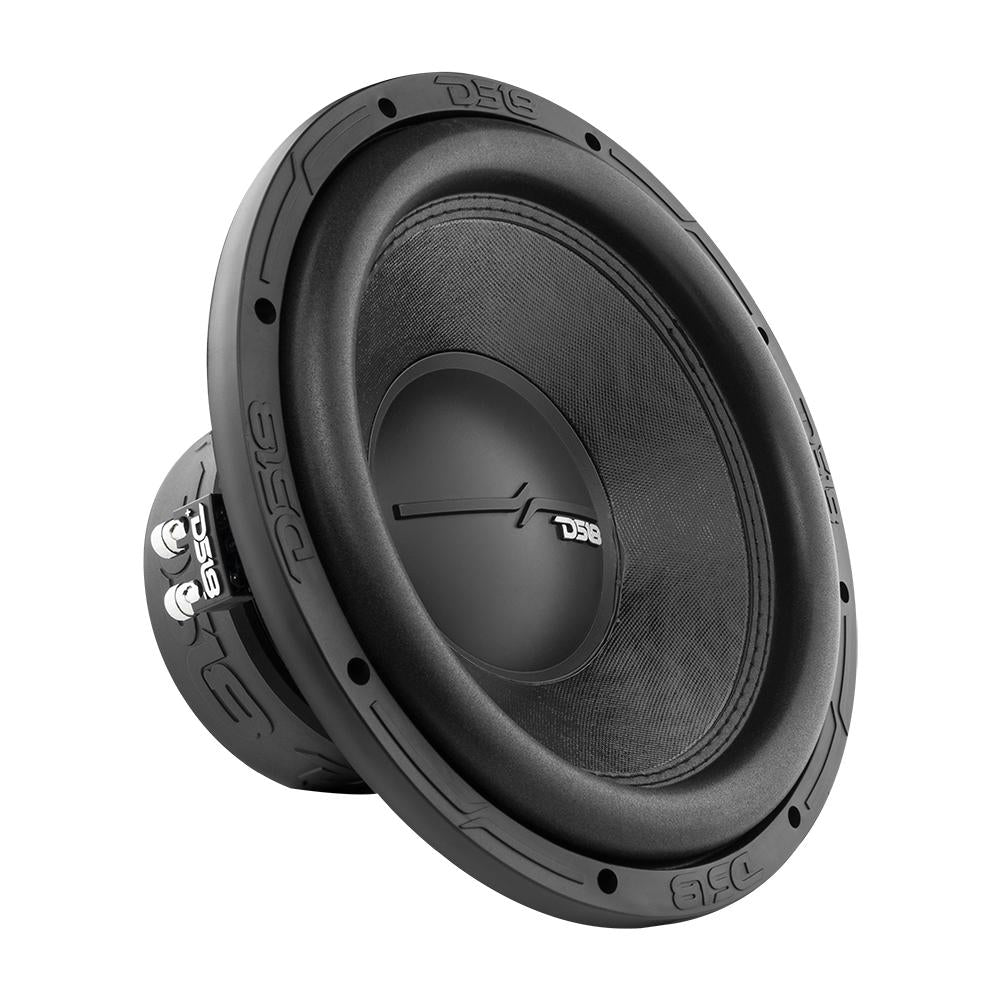

DS18 ZR15D 15" Subwoofer 1500W Max - 2 or 4 Ohm

SKU
ZR15.2D / ZR15.4D
Nominal Diameter
15" / 381mm
Nominal Impedance
2 + 2 Ohm / 4 + 4 Ohm
RMS Power Handling
750W
Maximum Power Handling
1500W
Sensitivity (1w/1m)
86 dB
Frequency Response
21-200Hz
Recommended Lo Pass Crossover
80Hz

Voice Coil Diameter
2.5" / 61.6mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Non-Pressed Paper
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Steel
Basket Color/Finish
Black Matte
Magnet Material
Ferrite
Magnet Weight
100 Oz
Displacement Volume
0.11 ft3

MEASUREMENTS

Overall Diameter
15.35" / 390mm
Overall Depth
8.34" / 212mm
Front Mount Baffle Cutout
14.1" / 359mm
Mounting Depth
7.4" / 188mm
Motor Diameter
6.1" / 155mm
