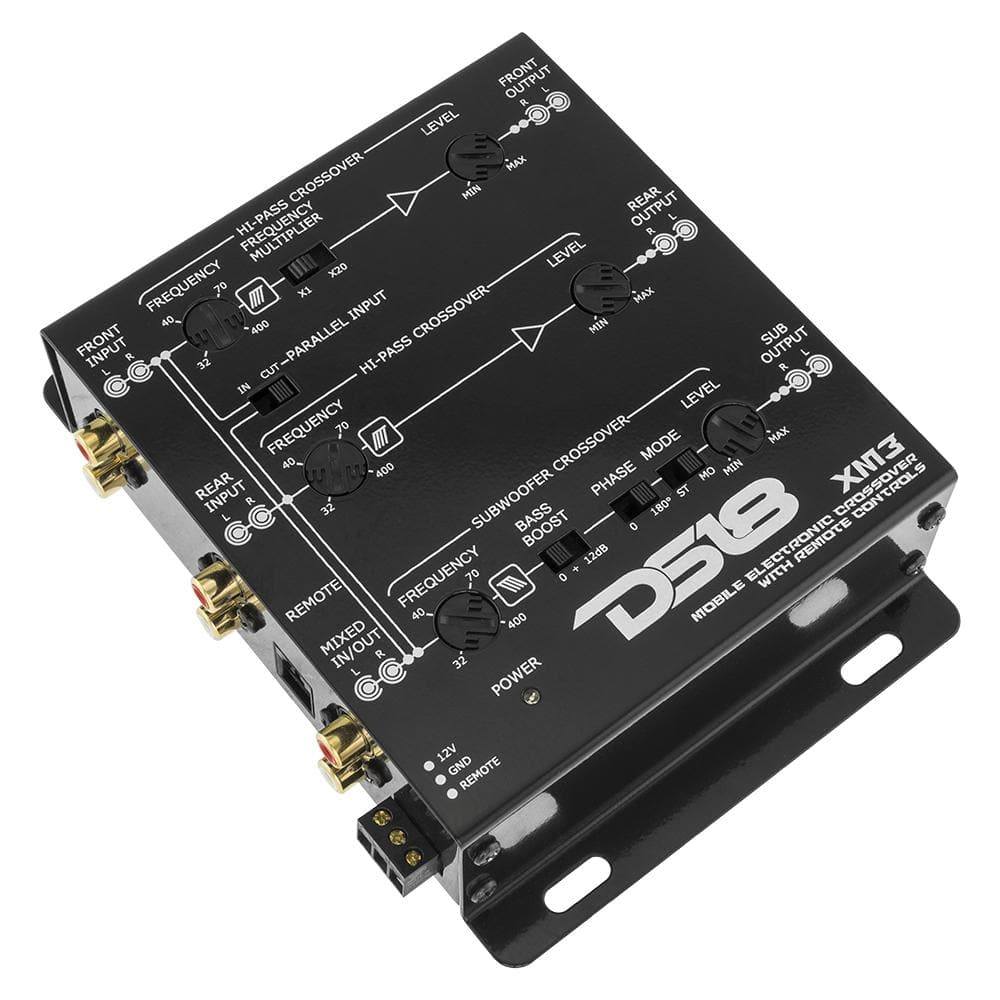

DS18 XM3 Active 3-way Crossover
XM3Model: | XM3 |
Supply Voltage: | 9-15VDC |
Maximum Output (10 K_Load): | 9vrms |
Low Level Input Voltage: | 4vrms |
Remote Sub Level: | 18dB Boost |
Crossover Frequencies: Front High Pass, Rear High Pass, and Subwoofer: | 32Hz to 400Hz |
Crossover Slopes: | 12dB/Octave Butterworth |
Total Harmonic Distortion (1KHz, 1 VRMS): | 0.01% |
Signal to Noise Ratio: | >102dB |
Features: | LED Power Indicator PWM Power Supply Ground and Remote Connector Bass Boost Power Gold RCA Input and Output connectors Detected Frequency Selection Control 0-180 Degree Subwoofer Phase Switch Remote Sub Level Control 3 Way Active Crossover with x20 Frequency Multiplier Switch |
