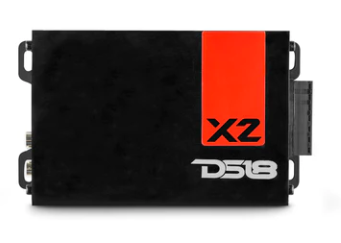

DS18 X2 2-Channel Ultra Compact Amplifier
DS18 X2 2-Channel Ultra Compact Amplifier
Regular price
$215.95
Regular price
Sale price
$215.95
Unit price
/
per
Shipping calculated at checkout.
SKU:X2
Couldn't load pickup availability
DS18 X2 2-Channel Ultra Compact Class D Amplifier 2 x140 Watts Rms @ 4-ohm
| CLASS | CLASS-D |
| AMPLIFIER TYPE | MICRO STEREO FULL RANGE AMP |
| CHANNELS | 2 |
| TOTALWATTS (PEAK) | 1140W |
| RMS POWER @ 4 OHMS | 140W x 2CH |
| RMS POWER @ 2 OHMS | 230W x 2CH |
| RMS POWER @ 1 OHMS | - |
| RMS POWER @ 4 OHMS BRIDGE | 380W x 1CH |
| FREQUECY RESPONSE | 20Hz - 20KHz |
| SIGNAL/NOISE RATIO | >90 dB |
| EFFICIENCY @ 4 OHMS | >80% |
| DAMPING FACTOR | >201 |
| THD % | <0.2% |
| LOW LEVEL INPUT RANGE | 0.2-5V |
| SELECTABLE X-OVER | LPF/FLAT/HPF |
| X-OVER FILTER RANGE | 40Hz - 400Hz |
| BASS BOOST RANGE | - |
| BASS BOOST FREQUENCY | - |
| INFRASONIC FILTER | - |
| PHASE SELECTOR | - |
| MINIMUM IMPENDANCE | 2 OHMS |
| LED INDICATOR | POWER/PROTECTION |
| POWER INPUT SIZE | 12GA |
| FUSE RATING | 40A |
| REMOTE LEVEL CONTROL | - |
| THERMAL PROTECTION | YES |
| OVER-LOAD PROTECTION | YES |
| DC OUTPUT PROTECTION | YES |
| SHORT CIRCUIT OUTPUT PROTECTIONVOLTAGE INPUT PROTECTION | YES |
| VOLTAGE INPUT PROTECTION | YES |
| DIMENSIONS LxWxH (INCHES) | 5.54 x 3.24 x 1.37" |
| HEATSINK LENGTH | 4.75" |
| COMPACT SIZE TO EASY INSTALLATION FOR ANY APLICATIONS | YES |
| STABLE/RELIABLE FOUR LAYERS TRACES PCB DESIGN | YES |
| SURFACE MOUNT COMPONENT TECHNOLOGY | YES |
| AUDIO PRECISION QUALITY CONTROL VERIFICATION | YES |
| CONFIGURATION 2CH/4CH INPUT SELECTOR | NO |
