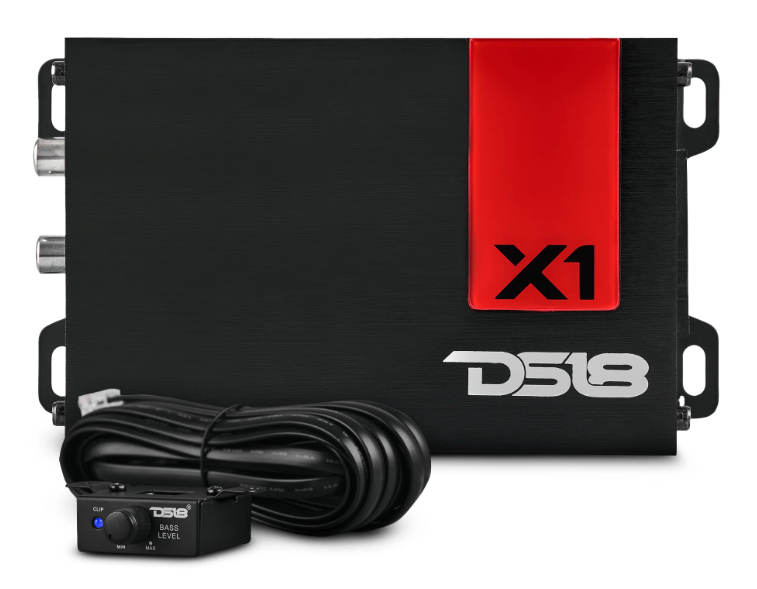

DS18 X1 1-Channel Ultra Compact Amplifier

SPECS

SKU
X1
Class
Class-D / Digital
Channels
1
Total Watts Peak
900W
RMS Power @ 4 Ohm
140W x 1 CH
RMS Power @ 2 Ohm
220W x 1 CH
RMS Power @ 1 Ohm
300W x 1 CH
Frequency Response
20Hz-500H
Signal/noise Ratio
>90 dB
Efficiency @ 4 Ohm
>80%

SPECS

Damping Factor
>200
THD %
<0.2%
Low Level Input Range
0.2-5V
Selectable X-Over
Fixed LPF
X-Over Filter Range
50HZ-250Hz
Bass Boost Range
0-18 dB
Bass Boost Frequency
40 Hz
Infrasonic Filter
10-55Hz
Phase Selector
0 - 180 Degrees
Minimum Impedance
1 Ohm

SPECS

Led Indicator
Power/Protection
Power Input Size
12 GA
Fuse Rating
30 A
Remote Level Control
Yes - Dash Mount
Thermal Protection
Yes
Over-load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Dimensions L x W x H (inches)
5.54 x 3.24 x 1.37"
