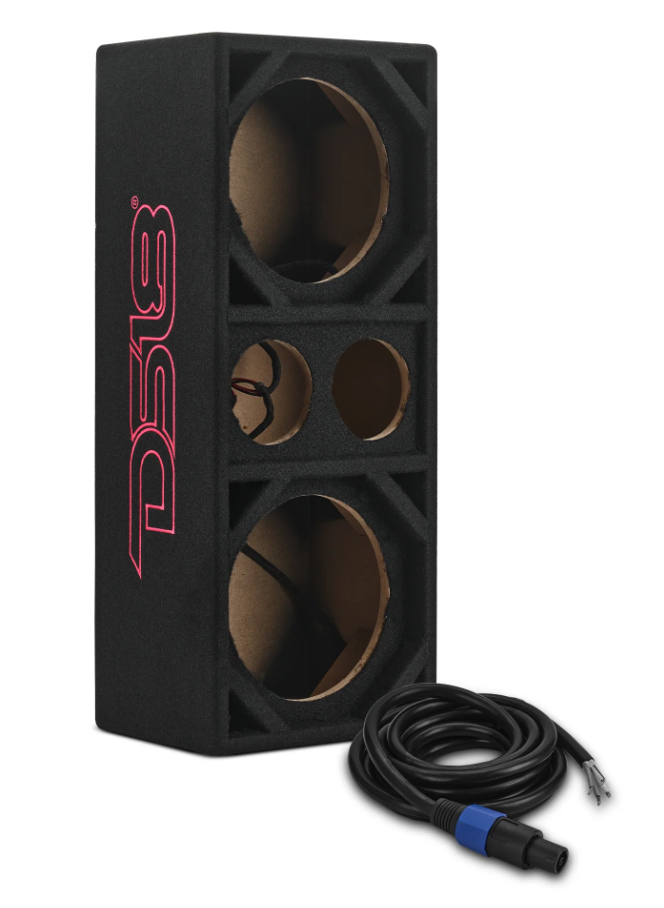

DS18 VOC8PRO Dual 8" + Dual 4" Tweeter Empty Voceteo Box

Enclosure Specifications

Fits
2 x 8” Midrange Speakers (Mount Depth: 4.75”)
2 x 4” Tweeters (Mount Depth: 5.5”)
Internal Volume
8.36L / 0.648ft3
Load Configuration
WF: Parallel ~ TW: Series
Enclosure Type
Ported
Enclosure Material
1/2" / 15mm MDF
Finish Material
Black Carpet

Measurements

Height
25" / 625mm
Width
9.8" / 250mm
Depth
7.5" / 190mm
Speaker Front Mount Baffle Cutout
7.3" / 185mm
Speaker Mounting Depth
4.75" / 121mm
Tweeter Front Mount Baffle Cutout
3.6" / 91mm
Tweeter Mounting Depth
5.5" / 140mm

Speaker Wires

Type
Speakon (Male)
Total Length
12ft / 3.6m
Conductor Material
Copper (OFC)
Number of Conductors
4
Gauge
14 AWG
Nominal Outside Diameter
8mm
Cable Construction Type
Stranded / Multi-Twist
Shield Material / Color
PVC / Black
