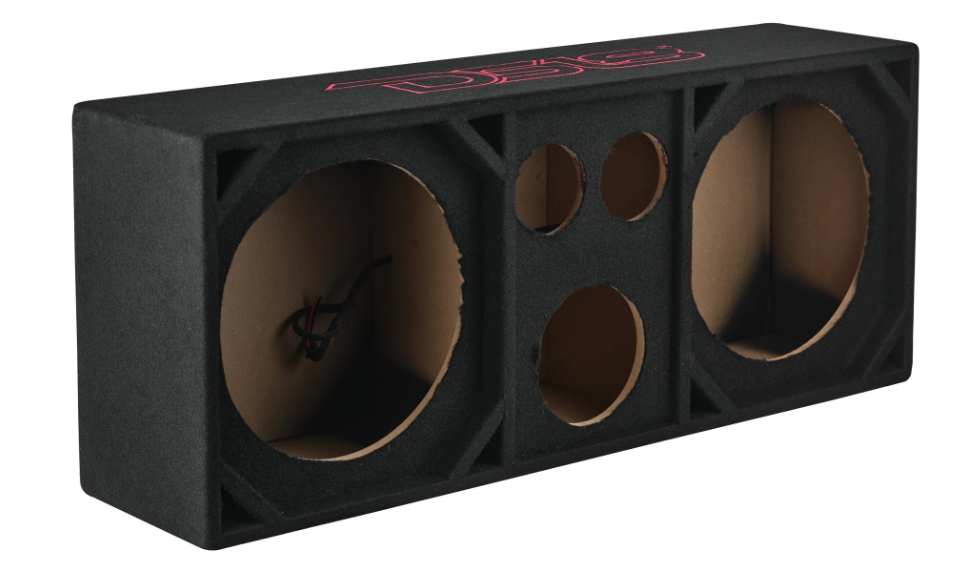

DS18 VOC12PRO Dual 12" + Dual 4" Tweeter + 2" Driver Empty Voceteo Box

DS18

DS18 VOC12PRO Dual 12" + Dual 4" Tweeter + 2" Driver Empty Voceteo Box

Name: DS18 VOC12PRO Dual 12" + Dual 4" Tweeter + 2" Driver Empty Voceteo Box
Brand: DS18
SKU: VOC12PRO
Price: 244.99 USD
Availability: InStock

$244.99

In stock and ready to ship Part # VOC12PRO

Not sure this fits your car? Send us an email at Info@FDMCarAudio.com

Key Features

Fits: 2 x 12" Midrange Speakers
Fits: 2 x 4" Tweeters
Fits: 1 x 2" Driver
Enclosure Type: Ported
Material: ½” MDF with Black Carpet

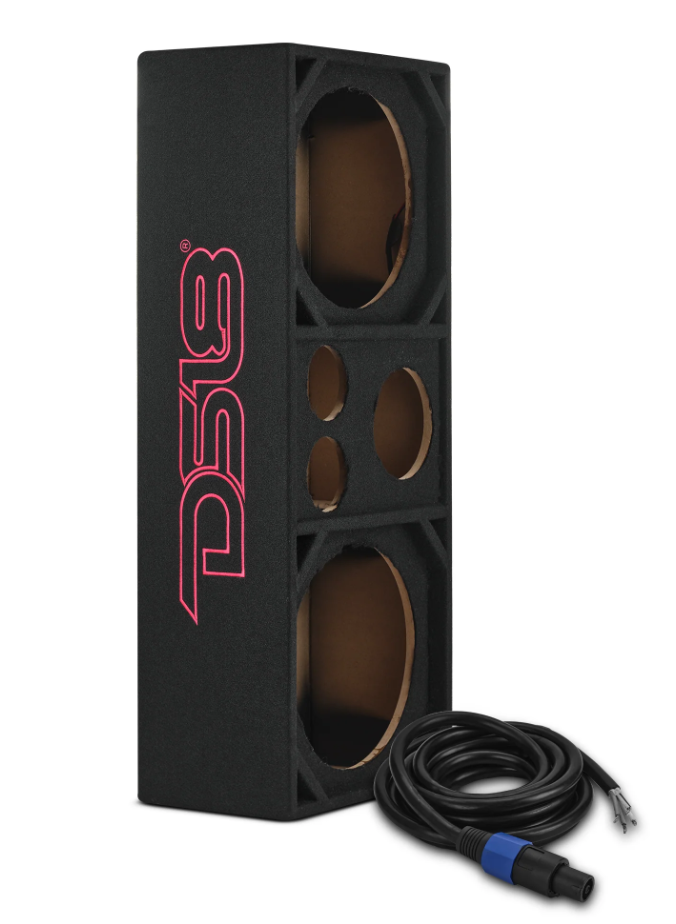

Includes: Speakon terminal + 12ft OFC 4-conductor Speakon cable

Enclosure Specifications

Internal Volume
53.56L / 1.89ft3
Load Configuration
WF - Parallel / TW-DR - Series/Parallel
Enclosure Type
Ported
Enclosure Material
1/2" (15mm) MDF
Finish Material
Black Carpet

Measurements

Height
36" / 920mm
Width
15" / 375mm
Depth
9"" / 225mm
Speaker Front Mount Baffle Cutout
11" / 279mm
Speaker Mounting Depth
5.75" / 146mm
Tweeter Front Mount Baffle Cutout
3.6" / 91mm
Tweeter Mounting Depth
6.25" / 159mm
Driver Front Mount Baffle Cutout
5.7" / 145mm
Driver Mounting Depth
6.25" / 160mm

Speaker Wires

Type
Speakon (Male)
Total Length
12ft / 3.6m
Conductor Material
Copper (OFC)
Number of Conductors
4
Gauge
14 AWG
Nominal Outside Diameter
8mm
Cable Construction Type
Stranded / Multi-Twist
Shield Material / Color
PVC / Black
