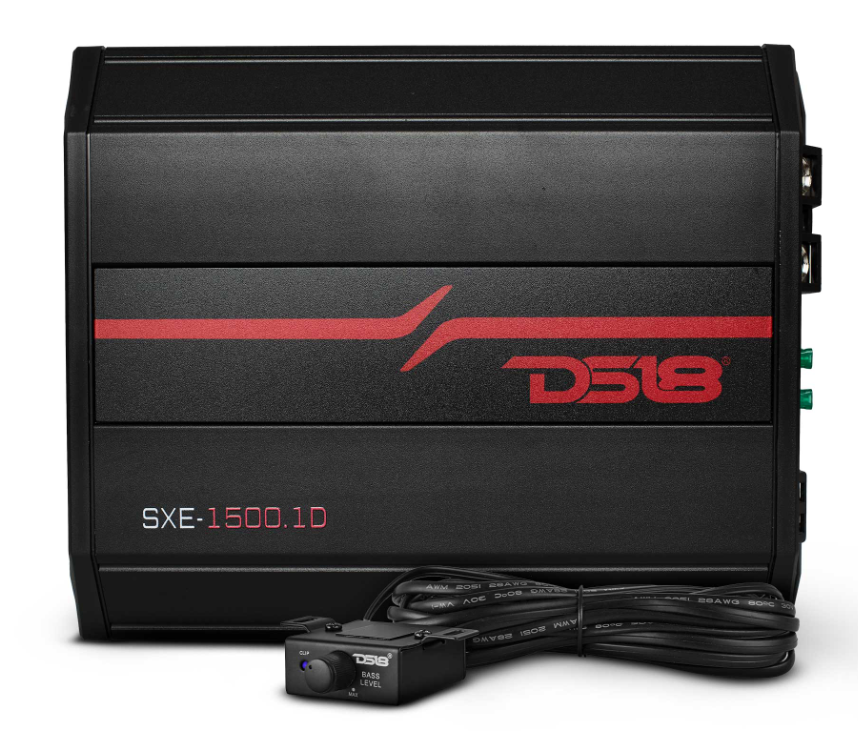

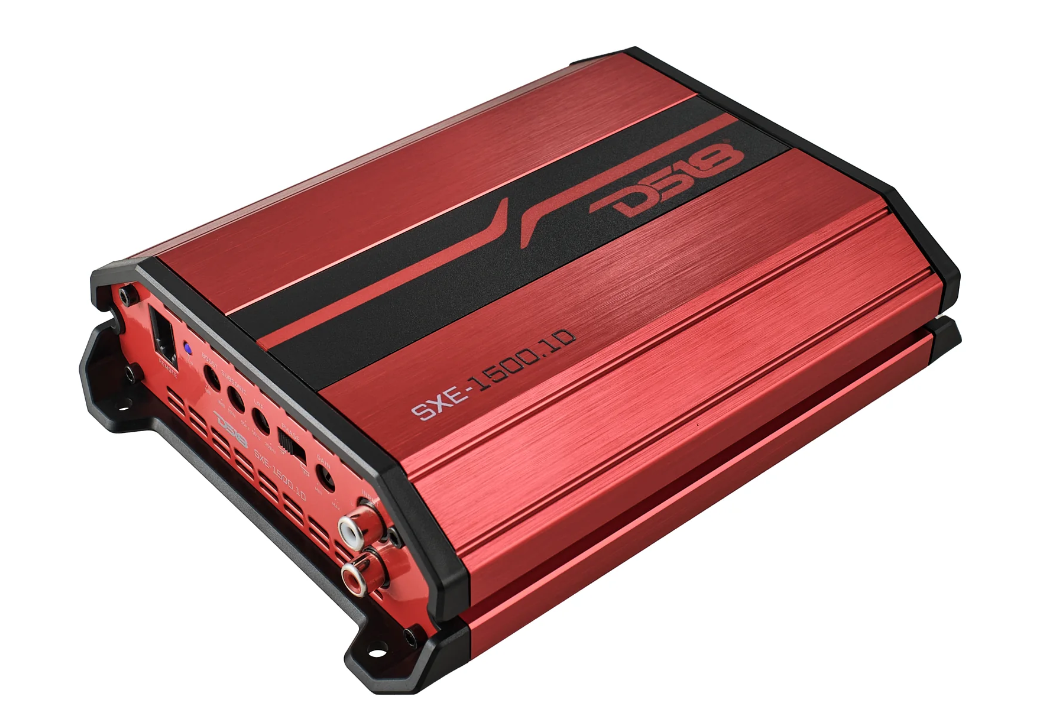

DS18 SXE-1500.1D Class D 1-channel Amplifier 1500W max

SPECS

Total Watts (Peak)
1500W
RMS Power @ 4 ohm
200W
RMS Power @ 2 ohm
350W
RMS Power @ 1 ohm
500W

Audio

Frequency Response
10Hz-250Hz
Signal to Noise Ratio
90dB
Efficiency @ 4ohm
80%
Damping Factor
140
Input Impedance
20kΩ
Channel Separation
N/A
Total Harmonic Distortion (THD)
0.05%
Low Level Input Range
200mV-5V
High Level Input
No
Selectable X-Over
Fixed LPF
X-Over Filter Range
50-250Hz
Bass Boost Range
0-12dB
Bass Boost Frequency
45Hz
Infrasonic Filter
10-55Hz
Phase Selector
0-180°

Features

Amplifier Class
Digital (D)
Amplifier Type
Monoblock Subwoofer
Number of Channels
1
Minimum Impedance
1 Ohm
Led Indicator
Power/Protect/Clip
Power Input Terminal Size
4Ga
Fuse Size
2 x 30A (60A)
Remote Level Control
Yes
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes (70°)
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (16.5v)
Clipping Protection
Yes

Measurement

Overall Length
7.68" / 195mm
Overall Width
5.5" / 140mm
Overall Height
1.8" / 48mm
Heatsink Length
6.18" / 157mm
Gross Single Unit Weight
1.4KG

Extra Features

Remote Level Control with Clip Indicator
Yes
