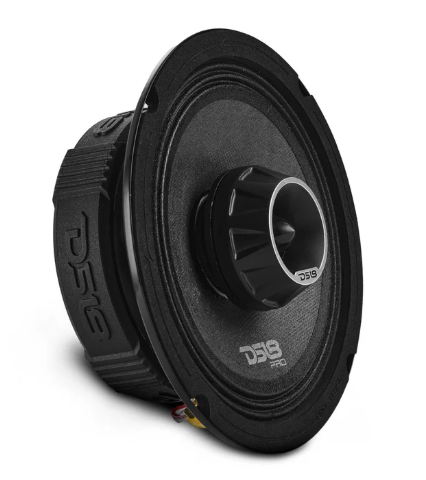

DS18 PRO-ZT6SL 6.5" Slim 2-Way MidRange LoudSpeaker with Built-in Bullet Tweeter

Specifications

Nominal Diameter
6.5" / 165.1mm
Nominal Impedance
4 ohms
RMS Power Handling
200W
MAX Power Handling
400W
Sensitivity (1w/1m)
95 dB
Frequency Response
80Hz-20kHz
Recommended HI Pass Crossover
120Hz
Pair or Single
Single
Grill Included
No
Voice Coil Water Protection
No
Water-Resistant Rating
IP32

Motor

Voice Coil Diameter
1.5" / 38.1mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Water-Resistant Paper
Surround Material
Treated Cloth
Basket Material
Steel
Basket Color / Finish
Glossy Black
Magnet Material
Ferrite
Magnet Weight
21 Oz

Tweeter Specifications

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Aluminum Alloy
Magnet Material
Neodymium (N35H)
Magnet Weight
0.44 Oz

Thiele & Small Parameters

Equivalent Volume
2.97L / 0.785ft3
Excursion (one way)
1.5mm
Free Air Resonance
150Hz
Mechanical Factor
7.186
Electrical Factor
0.681
Total Factor
0.622
Mechanical Mass
8.809g
Mechanical Compliance
0.119mm/N
BL Factor
6.521
Voice Coil Inductance
0.129mH
Cone Area
132.73cm2
DC Resistance
3.2 ohms
Mechanical Mass w/o air
7.081g

Measurement

Overall Diameter (Without Grill)
6.57" / 167mm
Overall Depth (Without Grill)
3" / 78mm
Front Mount Baffle Cutout
5.7" / 145mm
Mounting Depth
2.15" / 55mm
Motor Diameter
4.3" / 110mm
