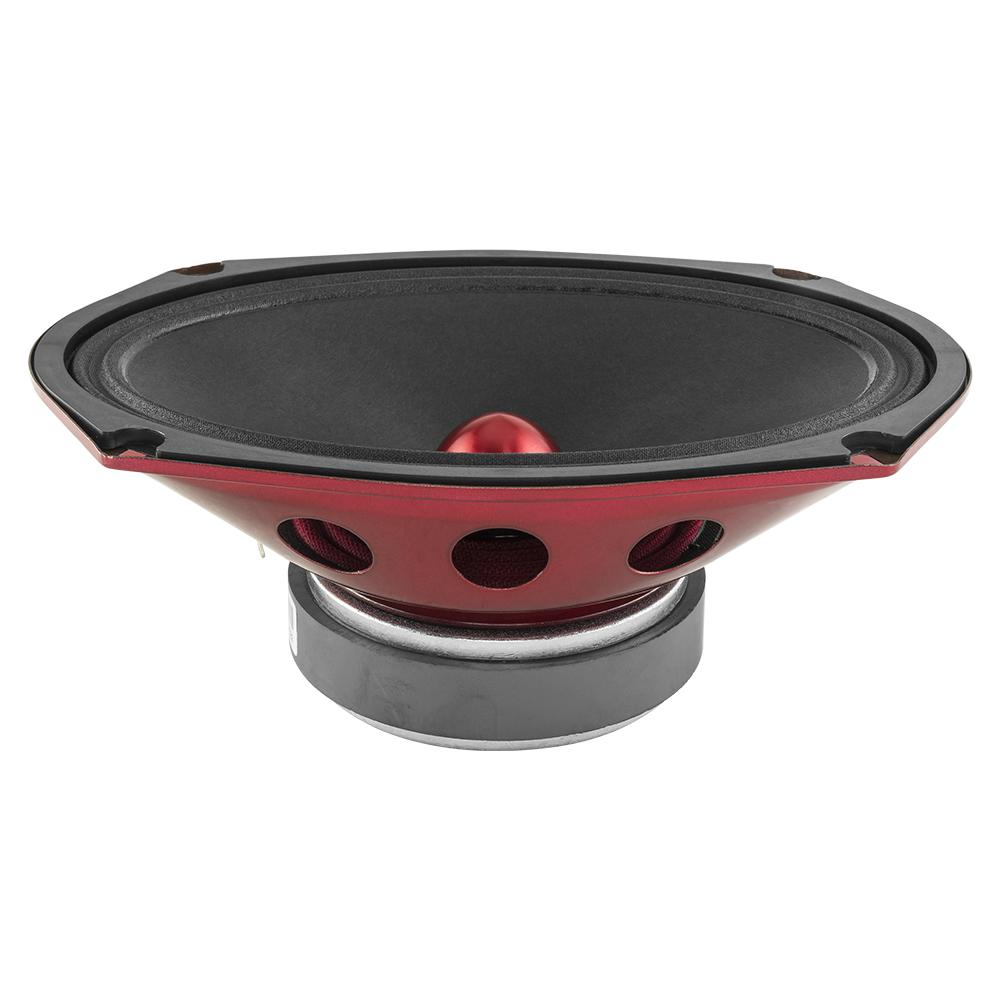

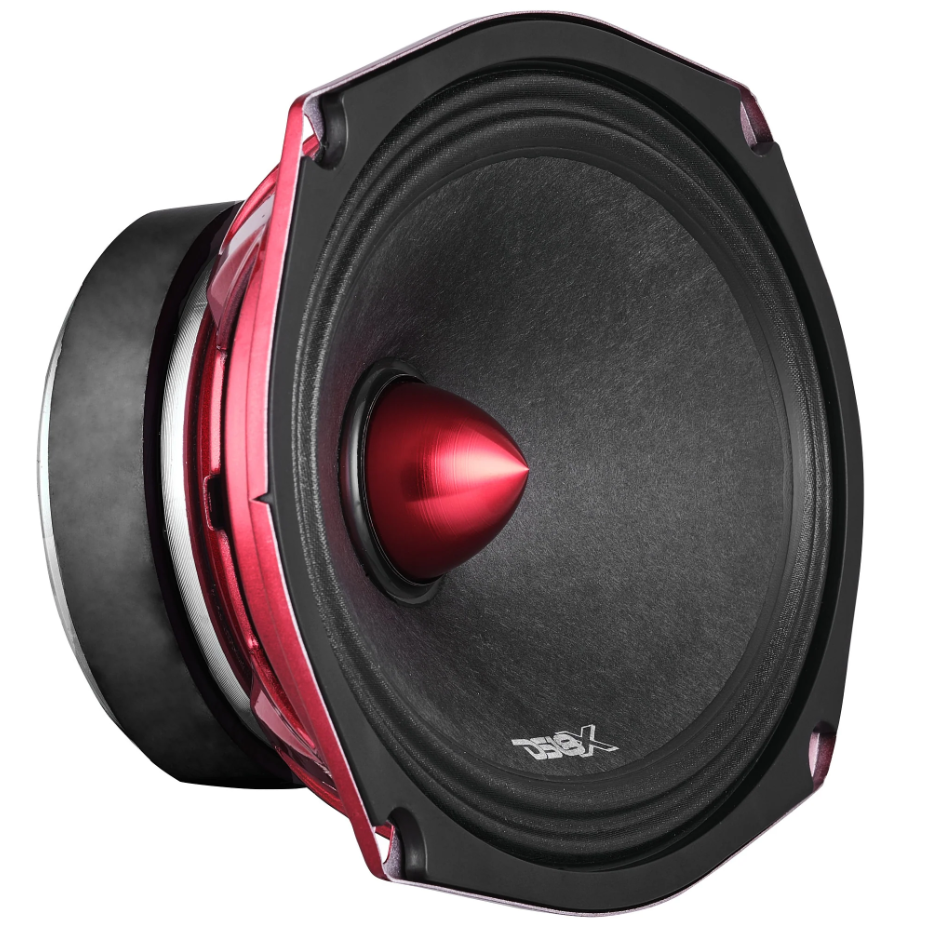

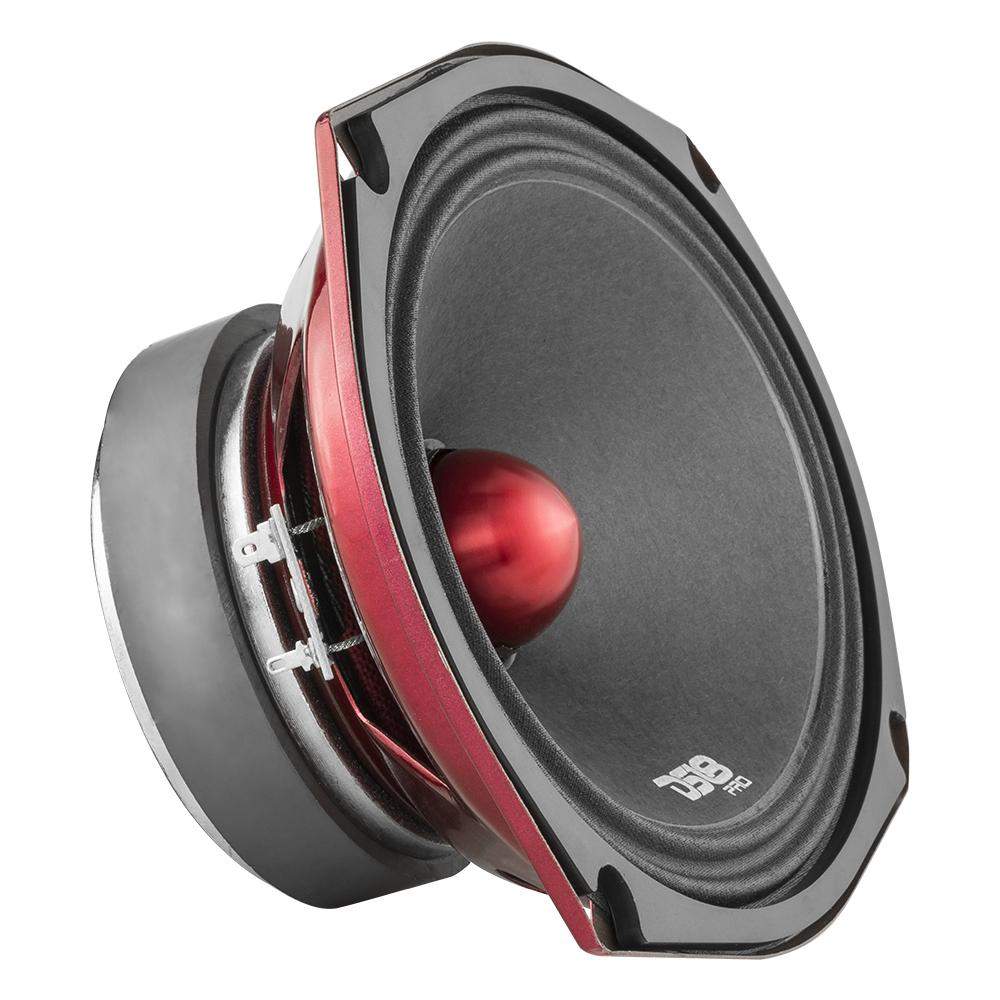

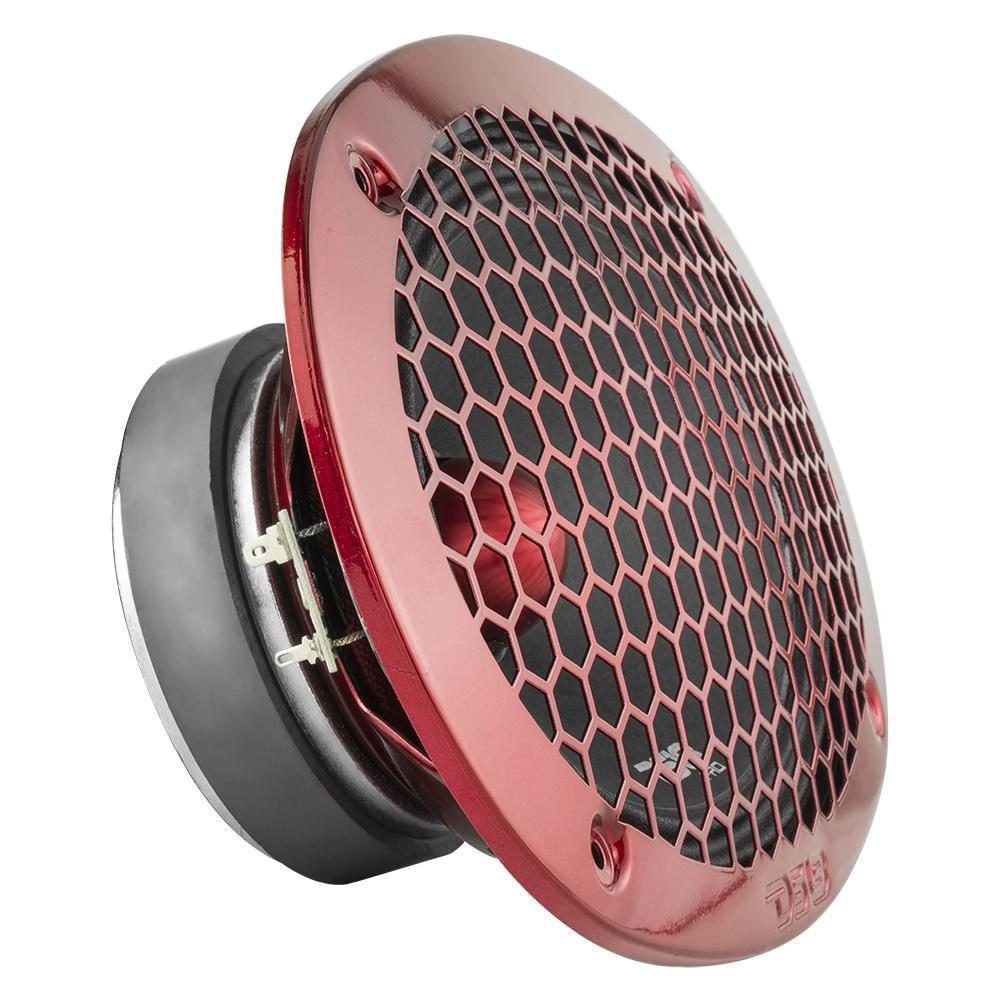

DS18 PRO-XBM 6x9" MidRange Loudspeaker with Bullet 4 or 8 ohm
DS18 PRO-XBM 6x9" MidRange Loudspeaker with Bullet 4 or 8 ohm
Regular price
$83.95
Regular price
Sale price
$83.95
Unit price
/
per
Shipping calculated at checkout.
SKU:PRO-X694BM
Couldn't load pickup availability
Sold individually
| Model: |
PRO-X698BM / PRO-X694BM |
| Type: | Midrange Loudspeaker |
| Size: | 6X9" |
| RMS Power: | 200W |
| MAX Power: | 400W |
| Frequency Response: | 65Hz-12KHz |
| Impedance: | 8 ohm or 4 Ohm |
| Sensitivity: | 98dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Red Steel Basket |
| Cone: | Non-Pressed Paper Cone |
| Magnet: | Ferrite |
| Voice Coil Wire: | CCAW |
| Diameters | |
| Voice Coil Size: | 1.5" |
| Magnet Size: | 27 oz. |
| Mounting Depth: | 3.27" |
| Cut-Out Dimension: | 8.7" x 6" |
| Parameters |
Equivalent Volume
27.34L / 0.965ft3
Excursion (one way)
7.7mm
Free Air Resonance
120Hz
Mechanical Factor
5.342
Electrical Factor
0.768
Total Factor
0.687
Mechanical Mass
8.21g
Mechanical Compliance
0.234mm/N
BL Factor
6.84
Voice Coil Inductance
4.11mH
Cone Area
207.34cm2
