DS18

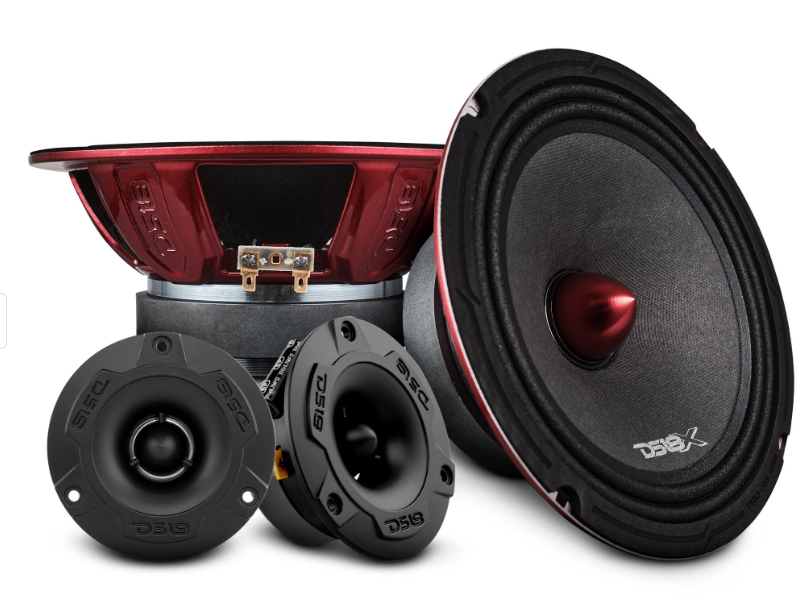

DS18 PRO-X8.4BMPK Package with 2 PRO-X8.4BM Mid Ranges and 1 PRO-TWX1/BK Tweeters

Name: DS18 PRO-X8.4BMPK Package with 2 PRO-X8.4BM Mid Ranges and 1 PRO-TWX1/BK Tweeters
Brand: DS18
SKU: PRO-X8.4BMPK
Price: 167.95 USD
Availability: InStock

$167.95

Sale Sold out

Shipping calculated at checkout.

Product variants

SKU:PRO-X8.4BMPK

Quantity

PRO-X8.4BMPK Package

2 X PRO-X8.4BM ~ 8" Mid-Range
1 X PRO-TWX1 ~ Pair of 3.78" Super Bullet Tweeters
MAX Power: 550 Watts(Speakers) 240 Watts(Tweeters)
RMS Power: 275 Watts(Speakers) 120 Watts(Tweeters)

SPECS

SKU
PRO-X8.4BMPK
Nominal Diameter
8" / 203.2 mm
Nominal Impedance
4 ohms
RMS Power Handing
275 WATTS
Maximum Power Handing
550 WATTS
Sensitivity (1w/1m)
96 dB
Frequency Response
93Hz-16KHz
Recommended Hi Pass Crossover
100 Hz

SPECS

Voice Coil Diameter
1.5" / 38.6 mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material
Steel
Magnet Weight
30 oz

THIELE & SMALL PARAMETERS

Vas
26.60 LTR
Xmax
9.3 mm
Fs
93 Hz
Qms
9.275
Qes
0.589
Qts
0.552
Re
3.2 ohms
