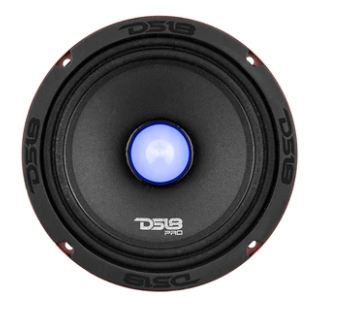

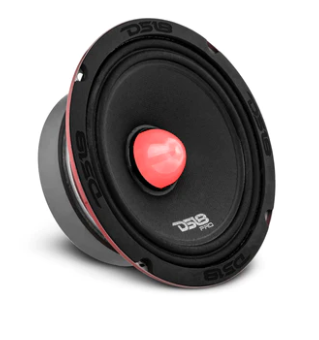

DS18 PRO-X6.4BMRGB 6.5" MidRange LoudSpeaker w RGB LEDs
DS18 PRO-X6.4BMRGB 6.5" MidRange LoudSpeaker w RGB LEDs
Regular price
$51.95
Regular price
Sale price
$51.95
Unit price
/
per
Shipping calculated at checkout.
SKU:PRO-X6.4BMRGB
Couldn't load pickup availability
SOLD INDIVIDUALLY
- Integrated RGB resonator (bullet tweeter) 4 wire connections for a bright and brilliant aesthetic.
| Specifications | |
| Nominal Diameter | 6.5" |
| Nominal Impedance | 4 Ohms |
| RMS Power Handing | 250w |
| MAX Power Handing | 500w |
| Sensitivity (1w/1m) | 94dB |
| Frequency Response | 125Hz-12KHz |
| Recommended HI Pass Crossover | 135 Hz |
| Motor | |
| Voice Coil Diameter | 38.6mm / 1.5" |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Bullet Material | Translucid ABS with RGB LED |
| Surround Material | Cloth |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 30 Oz |
| Displacement Volume | 0.032L |
| Thiele & Small Parameters | |
| Equivalent Volume | Vas 2.349L |
| Excursion (one way) | Xmax 8.2mm |
| Free Air Resonance | Fs 135Hz |
| Mechanical Factor | Qms 7.707 |
| Electrical Factor | Qes 0.789 |
| Total Factor | Qts 0.716 |
| Mechanical Mass | Mms 10.718g |
| Mechanical Compliance | Cms 0.094 m/N |
| BL Factor | BL 6.689 |
| Voice Coil Inductance | Le 4.22mH |
| Cone Area | Sd 132.73 mm2 |
| CD Resistance | Re 3.2 ohms |
| Measurements | |
| Overall Diameter | 6.61" / 168mm |
| Overall Depth | 2.83" / 72mm |
| Front Mount Baffle Cutout | 5.70" / 145mm |
| Mounting Depth | 2.64" / 67mm |
| Motor Diameter | 4.68" / 119mm |
