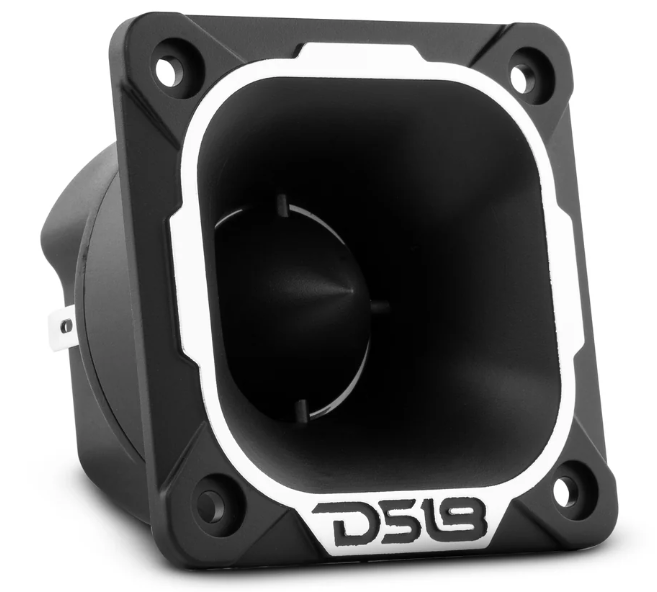

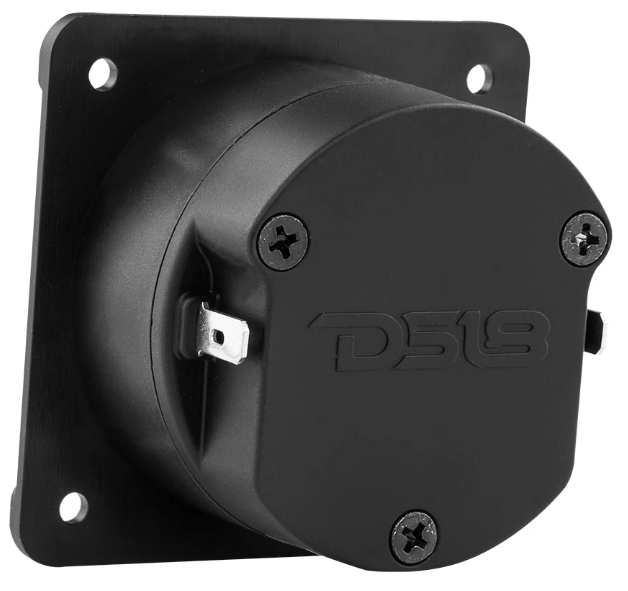

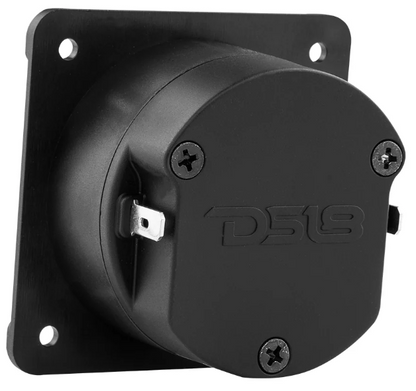

DS18 PRO-TWN3 2.5" High Compression Neodymium Tweeter

SPECS

SKU
PRO-TWN3
Nominal Diameter
2.5" / 63mm
Nominal Impedance
4 Ohms
AES Power Handling
50W
Program Power Handling
100W
Peak Power Handling
200W
Sensitivity (1w/1m)
107 dB
Frequency Response
1.6 KHz - 20 KHz
Recommended Hi Pass Crossover
2 KHz
Pair or Single
Single
Filter Included
Yes 2.2 uf

MOTOR

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
PEN
Magnet Material
Neodymium
Magnet Weight
0.57 oz
Body Material
PC

MEASUREMENTS

Overall Diameter
2.48 X 2.48" / 63 x 63 mm
Overall Depth
1.49" / 32.8 mm
Front Mount Baffle Cutout
2.12" / 54mm
Mounting Depth
1.32" / 33.5mm
Product Weight
0.34 lbs
Product Dimensions
3.1875 x 2.75 x 2
