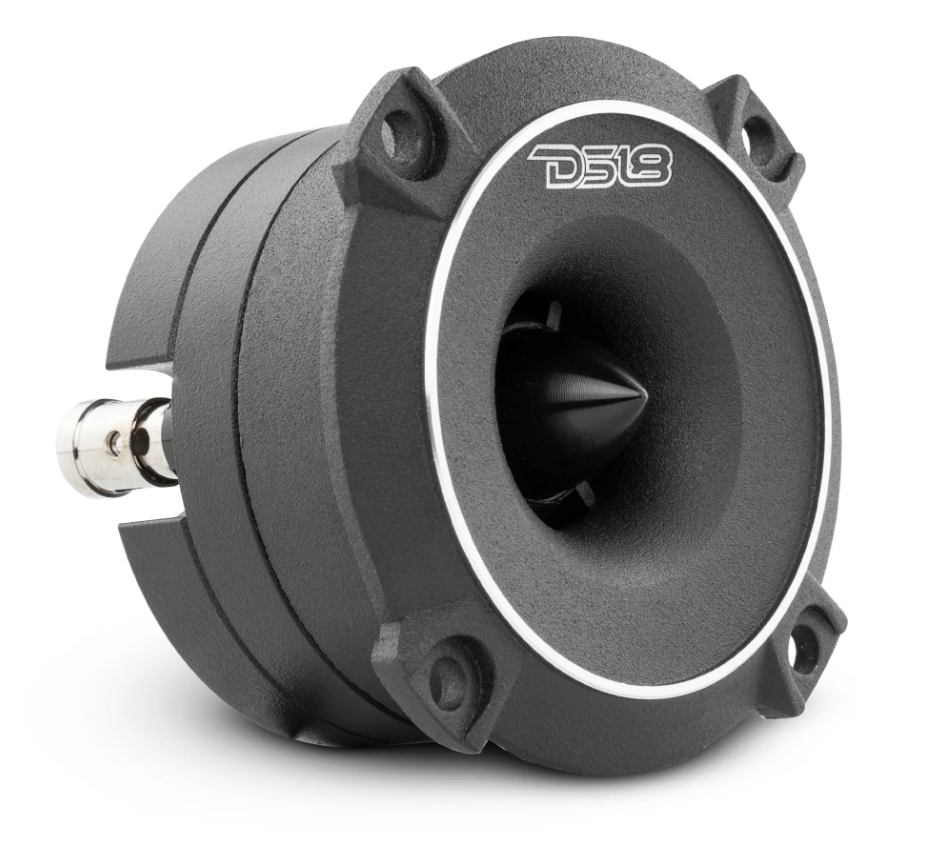

DS18 PRO-TWN1 High Compression 3" Slim Super Bullet Tweeter

DS18 PRO-TWN1 High Compression 3" Slim Super Bullet Tweeter

$40.95
$40.95
Sale Sold out
Shipping calculated at checkout.

PRO-TWN1

Sold individually

  • 3" High Compression Slim Bullet Tweeter
  • RMS Power: 120 Watts(240 Watts Peak)
  • Impedance: 4 Ohm ~ 104dB
  • Neodymium Magnet
  • Flush Style Mount

SPECS

SKU
PRO-TWN1
Nominal Diameter
3"
Nominal Impedance
4 OHMS
AES Power Handling
60 Watts
Program Power Handling
120 Watts
Peak Power Handling
240 Watts
Sensitivity (1w/1m)
104 dB
Frequency Response
3KHz - 20KHz
Recommended Hi Pass Crossover
3 KHz


MOTOR

Voice Coil Diameter
1" / 25.4 mm
Voice Coil Former Material
NSV
Winding Material
Pure Aluminum Round Wire
Diaphragm Material
Titanium
Magnet Material
Neodymium
Magnet Size
0.96" x 0.27"
Body Material
Aluminum
Bullet Material
CNC Aluminum


MEASUREMENTS

Overall Diameter
2.93" /74.4mm
Overall Depth
1.87" /47.5mm
Front Mount Baffle Cutout
2.32" /59mm
Mounting Depth
1.61" /41mm
