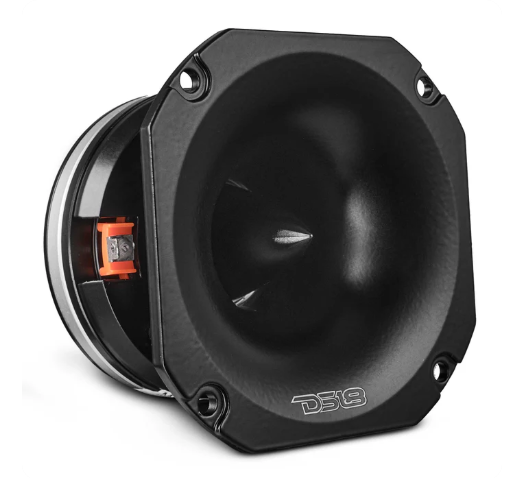

DS18 PRO-TW850CN-4/BK High Compression 4" Neodymium Tweeter

Specifications

SKU
PRO-TW850CN-4/BK
Nominal Diameter
4" / 101mm
Nominal Impedance
4 ohms
AES Power Handling
170W
Program Power Handling
250W
Peak Power Handling
500W
Sensitivity (1w/1m)
111dB
Frequency Response
700Hz-20KHz
Recommended Hi Pass Crossover
1KHz
Sold In Pair or Single
Single

Body / Features

Filter (Bass Blocker)
4.7uf / 100V
Body Material
Aluminum
Bullet Material
CNC Aluminum

Voice Coil Diameter
1.5" / 38mm
Voice Coil Former Material
KSV
Winding Material
CCAR
Diaphragm Material
PEI
Magnet Material
Neodymium
Magnet Size
3.42"x0.25" / 87x6mm
Magnet Weight
7.4 Oz

Measurement

Overall Diameter
4" / 102mm
Overall Depth
2.8" / 71.5mm
Front Mount Baffle Cutout
3.5" / 90mm
Mounting Depth
2.6" / 66.5mm
