DS18

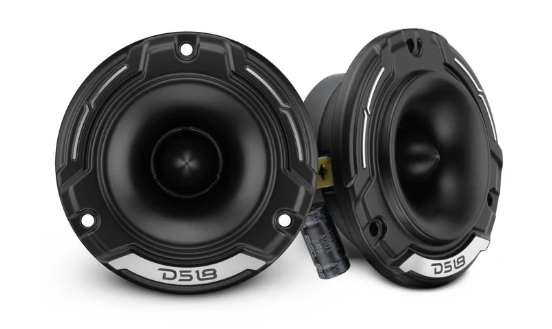

DS18 PRO-TW1ZS Shallow Mount Super Bullet Tweeters

DS18 PRO-TW1ZS Shallow Mount Super Bullet Tweeters

$39.95
$39.95
Sale Sold out
Shipping calculated at checkout.

PRO-TW1ZS

PRO-TW1ZS

  • Sold in pairs
  • Ultra-Shallow 1.3" Mounting Depth
  • 3.8" Diameter
  • Razor-Sharp Highs (3.15kHz–20kHz)
  • 1" Aluminum Voice Coil + Diaphragm
  • Built-In 4.7µF Bass Blocker
  • Competition-Ready SPL Output

Specifications

Nominal Impedance
4 Ohms
AES Power Handling
50W
Program Power Handling
100W
Peak Power Handling
200W
Sensitivity (1w/1m)
105 dB
Frequency Response
3.15KHz-20kHz
Recommended High-Pass Crossover
4kHz

Body / Features

Filter (Bass Blocker)
4.7uf
Body Material
Aluminum
Body Color / Finish
Black
Faceplate Color / Finish
Black / Machined
Bullet Material
Aluminum

Motor

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Aluminum
Magnet Material
Ferrite
Magnet Weight
6.5 Oz

Measurement

Overall Diameter
3.78" / 96mm
Overall Depth
1.8" / 45.5mm
Front Mount Baffle Cutout
2.83" / 72mm
Mounting Depth
1.3" / 35mm
Motor Diameter
2.76" / 70mm
