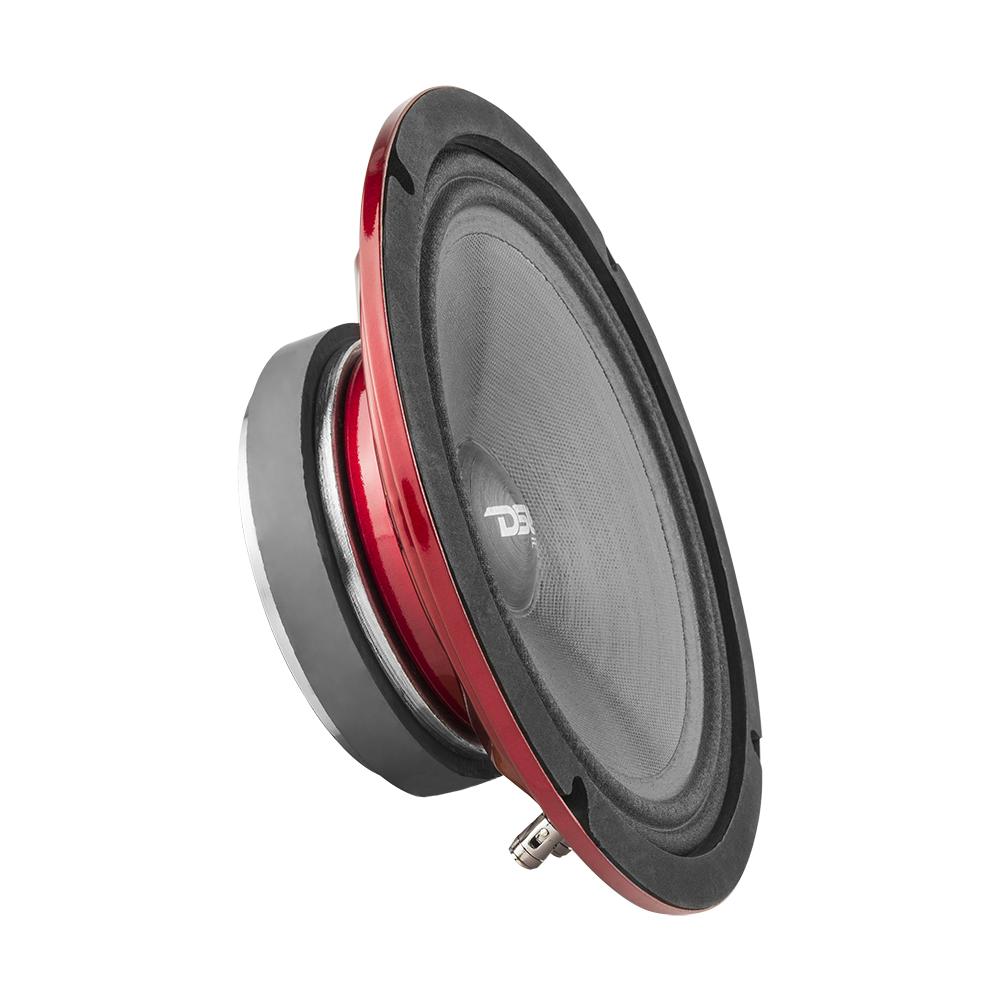

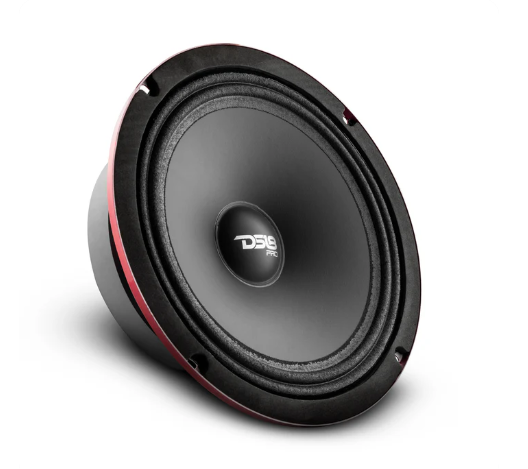

DS18 PRO-SM8.2 Shallow Water Resistant 8" Mid Range
PRO-SM8.2Sold Individually
| Model: | PRO-SM8.2 |
| Type: | Midrange Loudspeaker |
| Size: | 8" |
| RMS Power: | 250W |
| MAX Power: | 500W |
| Frequency Response: | 65-12kHz |
| Impedance: | 2 ohm |
| Sensitivity: | 97dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Red Steel Basket |
| Cone: | Non-Pressed Water Resistant Paper |
| Magnet: | Ferrite |
| Voice Coil Wire: | CCAW |
| Measurements | |
| Voice Coil Size: | 1.5" |
| Magnet Weight: | 25 oz |
| Mounting Depth: | 2.45" (55.5mm) |
| Cut-Out Dimension: | 6.99" (177.4mm) |
| Parameters | |
| Vas | 11.321LTR |
| Xmax | 8 mm |
| Fs | 110 Hz |
| Qms | 3.881 |
| Qes | 0.78 |
| Qts | 0.718 |
| Re | 2 Ohms |
