DS18

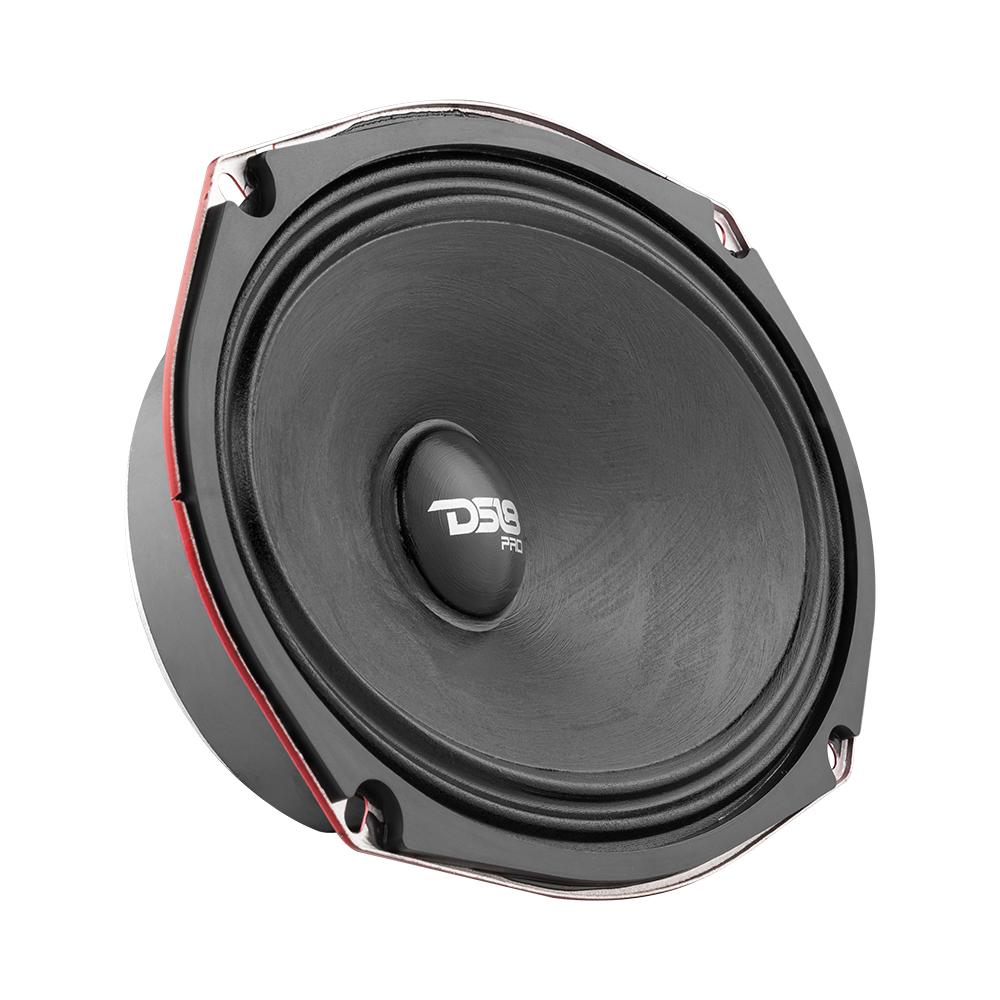

DS18 PRO-SM69 Shallow Water Resistant 6x9" Mid Range - 2 or 4 Ohm

DS18 PRO-SM69 Shallow Water Resistant 6x9" Mid Range - 2 or 4 Ohm

$77.95
$77.95
Sale Sold out
Shipping calculated at checkout.
Impedance

PRO-SM69.2

Sold Individually

PRO-SM6.2 or PRO-SM6.4

  • 6x9" Shallow Midrange Speaker 500W MAX / 250W RMS
  • 2 or 4-Ohm Impedance for Easy Amplifier Matching
  • Water-Resistant Cone, Dust Cap, and Cloth Surround
  • High Sensitivity (96dB) for Clear, Loud Output
  • 1.5" Kapton Voice Coil with 25oz Ferrite Magnet
  • 2.83" Mounting Depth for Versatile Install Options

SPECS

SKU
PRO-SM69.2 or PRO-SM69.4
Nominal Diameter
6x9" / 152.4 mm x 228.6 mm
Nominal Impedance
2 or 4 OHMS
RMS Power Handing
250 Watts
Maximum Power Handing
500 Watts
Sensitivity (1w/1m)
96 dB
Frequency Response
60 Hz-5 Khz
Recommended Hi Pass Crossover
120 Hz

SPECS

Voice Coil Diameter
1.5" / 38.1 mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material
Steel
Magnet Weight
33 Oz

MEASUREMENTS

Overall Diameter
9.25" x 6.57" / 235 mm x 167 mm
Front Mount Baffle Cutout
8.6" x 6" / 220 mm x 152 mm
Mounting Depth
2.68" / 68 mm
Overall Depth
2.91" / 74 mm
Product Weight
5.5 lbs
Product Dimensions
10 x 7.25 x 4
