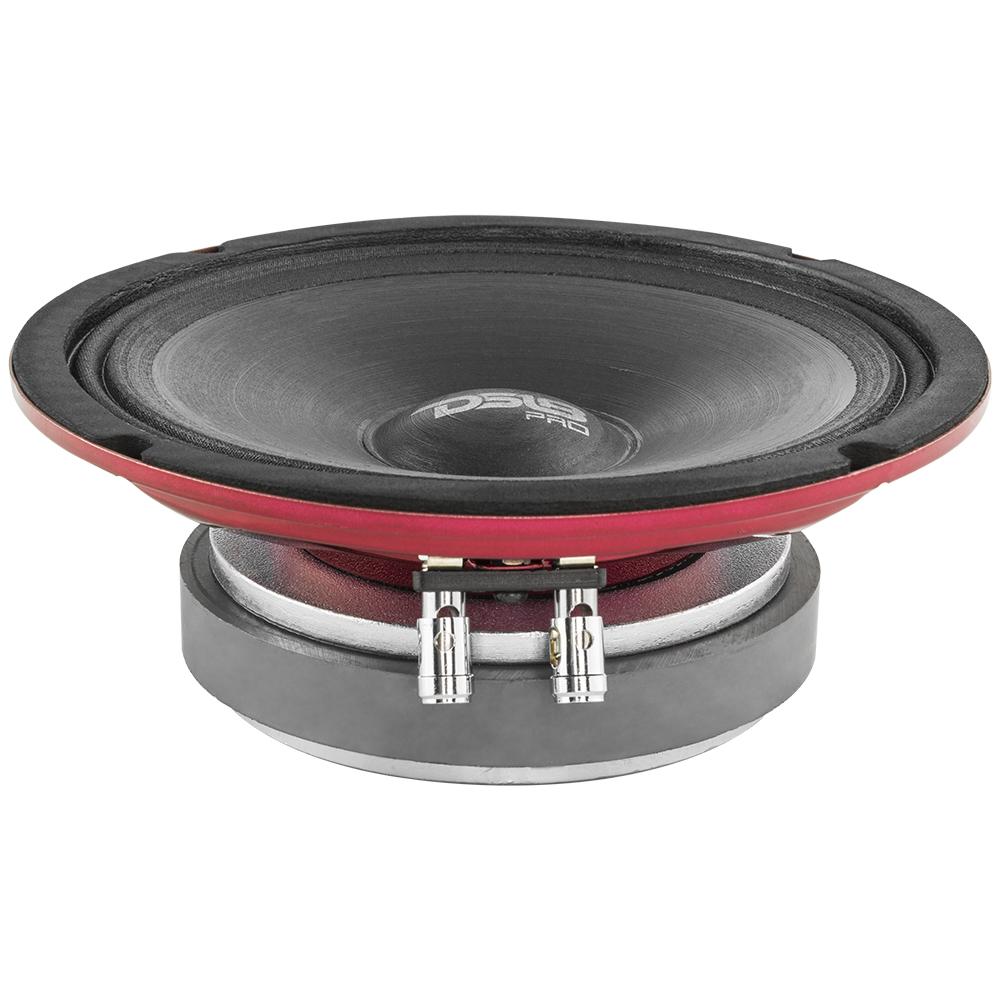

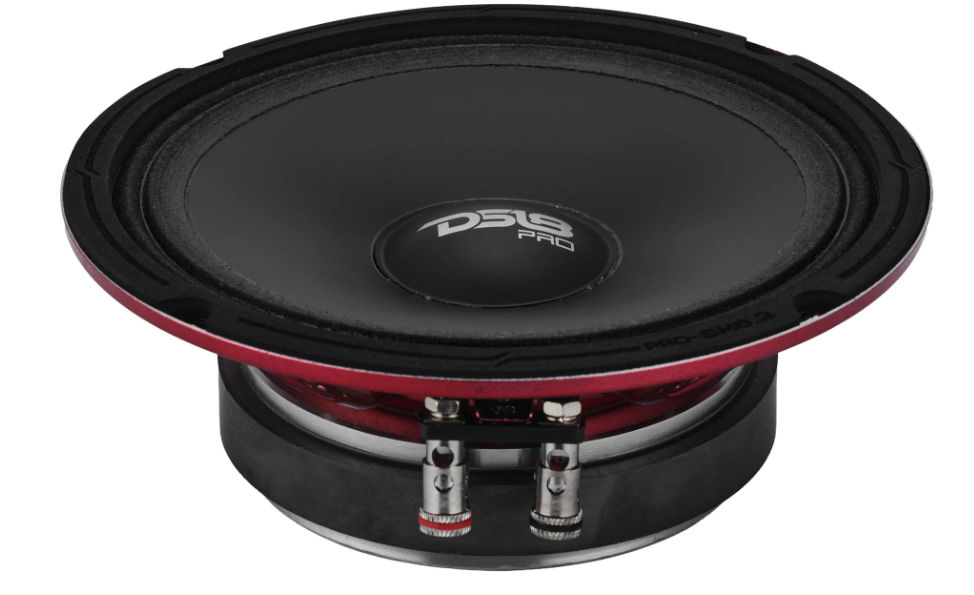

DS18 PRO-SM6 Shallow Water Resistant 6.5" Mid Range - 2 or 4 Ohm
DS18

DS18 PRO-SM6 Shallow Water Resistant 6.5" Mid Range - 2 or 4 Ohm

$64.95
In stock and ready to ship Part # PRO-SM6.2
Not sure this fits your car? Send us an email at Info@FDMCarAudio.com

Sold Individually

Key Features

  • 6.5” Shallow Midrange Speaker (400W MAX / 200W RMS)
  • Water-Resistant Cone & Dust Cap
  • 2- or 4- Ohm Impedance
  • 95dB Sensitivity
  • Slim 2.18” Mounting Depth
  • 1.5” Kapton Voice Coil with 20oz Ferrite Magnet

SKU
PRO-SM6.2 / PRO-SM6.4
Nominal Diameter
6.5” / 165.1mm
Nominal Impedance
2-Ohm of 4-Ohm
RMS Power Handling
200 Watts
MAX Power Handling
400 Watts
Sensitivity (1w/1m)
95 dB
Frequency Response
80Hz-14KHz
Recommended Hi Pass Crossover
180 Hz

MOTOR

Voice Coil Diameter
1.5” / 38.1 mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Water Resistant Paper
Dust Cap Material
Water Resistant
Surround Material
Coated Cloth
Basket Material
Steel
Basket Color
Glossy Red
Magnet Material
Ferrite
Magnet Weight
20 Oz

MEASUREMENT

Overall Diameter
6.5” / 165mm
Overall Depth
2.32” / 59 mm
Front Mount Baffle Cutout
5.67“ / 144 mm
Mounting Depth
2.18” / 56 mm
Motor Diameter
4.33" / 110 mm
