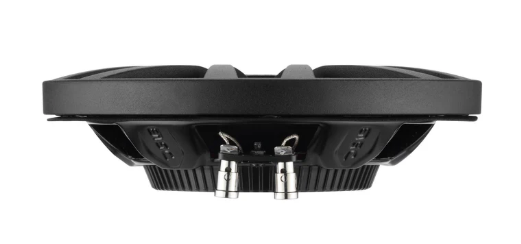

DS18 PRO-INS6.4 6.5" Ultra Slim MidRange LoudSpeaker with Neodymium Magnet

Specifications

Nominal Diameter
6.5" / 167mm
Nominal Impedance
4 Ohms
RMS Power Handling
120W
MAX Power Handling
240W
Sensitivity (1w/1m)
95dB
Frequency Response
80Hz-6KHz
Recommended HI Pass Crossover
120Hz
Pair or Single
Single

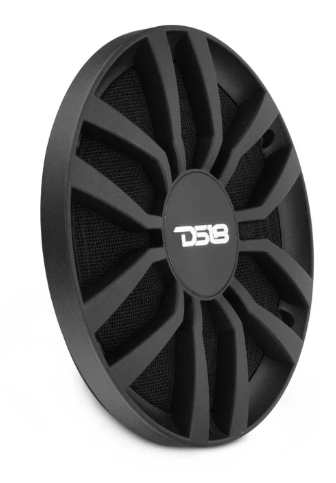

Grill Included
Yes with Cloth Protection

Motor

Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Cone Material
Paper
Surround Material
Cloth
Basket Material
Steel
Basket Color / Finish
Matte Black
Magnet Material
Neodymium
Magnet Weight
1.89 Oz

Thiele & Small Parameters

Equivalent Volume
7.961L / 0.281ft3
Excursion (one way)
2mm
Free Air Resonance
140Hz
Mechanical Factor
5.336
Electrical Factor
1.408
Total Factor
1.114
Mechanical Mass
8.868g
Mechanical Compliance
0.312mm/N
BL Factor
3
Voice Coil Inductance
0.119mH
Cone Area
132.73Cm2
DC Resistance
3.5 Ohms
Mechanical Mass w/o air
7.988g

Measurement

Overall Diameter
6.89" / 175mm
Overall Depth
1.94" / 49mm
Front Mount Baffle Cutout
5.65" / 144mm
Mounting Depth
1.16" / 29mm
Motor Diameter
4.31" / 110mm
