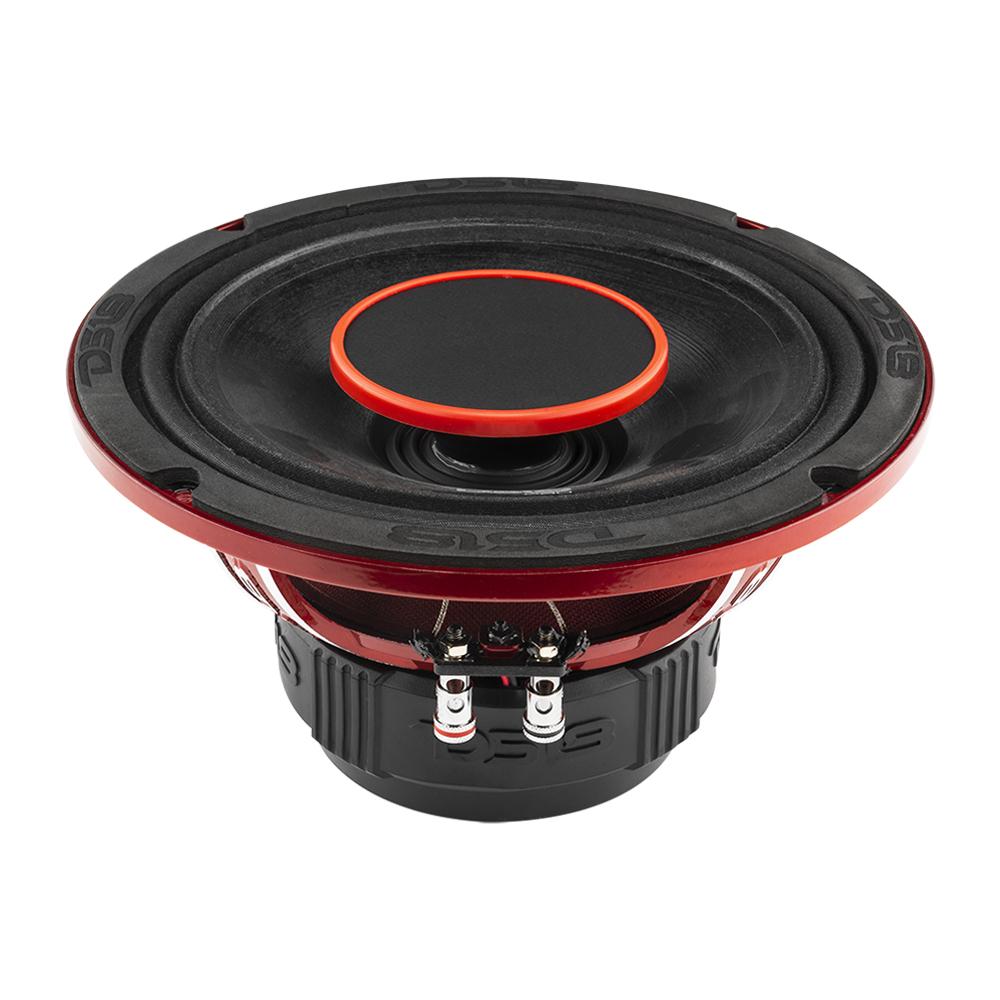

DS18 PRO-HY8.4B 8" Hybrid Mid-Range Loudspeaker with Driver
DS18 PRO-HY8.4B 8" Hybrid Mid-Range Loudspeaker with Driver
Regular price
$131.95
Regular price
Sale price
$131.95
Unit price
/
per
Shipping calculated at checkout.
SKU:PRO-HY8.4B
Couldn't load pickup availability
Sold individually
| SPECIFICATIONS | |
| Nominal Diameter | 8” |
| Nominal Impedance | 4 OHMS |
| RMS Power Handling | 250W |
| MAX Power Handling | 500W |
| Sensitivity (1w/1m) | 97dB |
| Frequency Response | 80Hz-20KHz |
| Recommended Hi Pass Crossover | 100 Hz |
| Number of Ways | 2 |
| Pair or Single | Single |
| MID-RANGE SPECIFICATIONS | |
| Voice Coil Diameter | 1.5” / 38.6 mm |
| Voice Coil Former Material | Glass Fiber |
| Winding Material | CCAW |
| Cone Material | Water Resistant Paper |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color/Finish | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 27 oz |
| Displacement volume | 0.051L |
| THIELE & SMALL PARAMETERS | |
| Equivalent Volume | Vas 10.048L |
| Excursion (one way) | Xmax 9.2 mm |
| Free Air Resonance | FS 135Hz |
| Mechanical Factor | Qms 5.96 |
| Electrical Factor | Qes 1.321 |
| Total Factor | Qts 1.011 |
| Mechanical Mass | Mms 9.69g |
| Mechanical Compliance | Cms 137.345 mm/N |
| BL Factor | BL 4.58 |
| Voice Coil Inductance | Le 4.22mH |
| Cone Area | Sd 226.98 Cm2 |
| DC Resistance | Re 3.4 ohms |
| Mechanical Mass w/o Air | Mmd 7.724g |
| DRIVER SPECIFICATIONS | |
| Voice Coil Diameter | 1” / 25.4 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Horn Diameter | 3.26" |
| MEASUREMENTS | |
| Overall Diameter | 8.31" / 211mm |
| Overall Depth | 4.65" / 118.2mm |
| Front Mount Baffle Cutout | 7.1" / 180.3mm |
| Mounting Depth | 4.29" / 109mm |
| Motor Diameter | 4.59" / 116.6mm |
