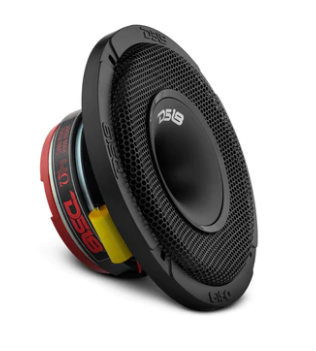

DS18 PRO-HY6MSL 6.5" Shallow Hybrid Mid-Range Loudspeaker with Driver 8 Ohm
DS18 PRO-HY6MSL 6.5" Shallow Hybrid Mid-Range Loudspeaker with Driver 8 Ohm
Regular price
$66.95
Regular price
Sale price
$66.95
Unit price
/
per
Shipping calculated at checkout.
SKU:PRO-HY6MSL
Couldn't load pickup availability
Sold individually
| SPECIFICATIONS | |
| Nominal Diameter | 6.5" / 165.1mm |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 150W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 93dB |
| Frequency Response | 120Hz-20Khz |
| Recommended HI Pass Crossover | 140Hz |
| Number of ways | 2 ways |
| Pair or Single | Single |
| Grill Included | Yes |
| WOOFER SPECIFICATIONS | |
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAW |
| Cone Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 17.5 Oz |
| DRIVER SPECIFICATIONS | |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Horn Diameter | 3" / 76.2mm |
| SPEAKER MEASUREMENT | |
| Overall Diameter | 6.92" / 176mm |
| Overall Depth | 3.52" / 89.5mm |
| Front Mount Baffle Cutout | 5.6" / 142mm |
| Mounting Depth | 2.77" / 70.5mm |
| Motor Diameter | 4.33" / 110mm |
