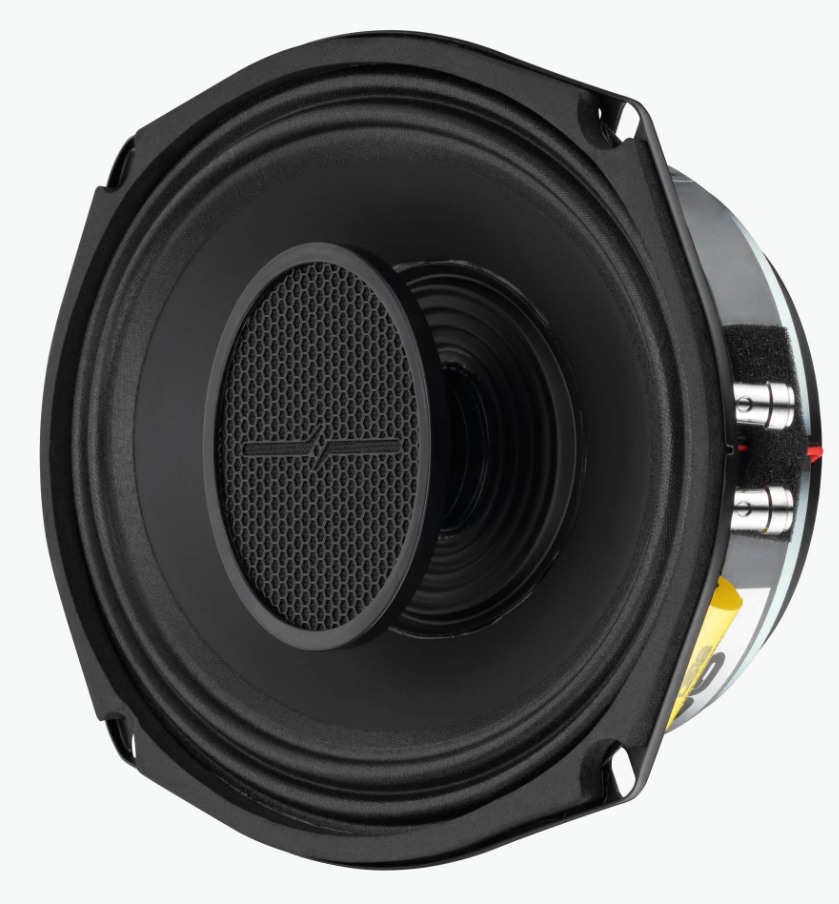

DS18 PRO-HY69MSL 6x9" Hybrid Slim Loudspeaker with Driver 2/4/8 Ohm

General Specifications

Nominal Diameter
6x9" / 152x228mm
Nominal Impedance
2,4, or 8 Ohms
RMS Power Handling
175W
MAX Power Handling
350W
Sensitivity (1w/1m)
97dB
Frequency Response
60Hz - 20kHz
Recommended High-Pass Crossover
80Hz
Number of Ways
2 ways
Water-Resistant Rating
IP65
Pair or Single
Single
Grille Included
Yes, With Water and Sun Protection Cloth

Woofer Specifications

Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Cone Material
Water-Resistant Paper
Surround Material
Treated Cloth
Basket Material
Steel
Basket Color/Finish
Black
Magnet Material
Ferrite
Magnet Weight
25.5 Oz

Thiele & Small Parameters

Equivalent Volume
5.68L / 0.2ft3
Excursion (one way)
2mm

Driver Specifications

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Neodymium
Horn Diameter
3.15" / 80mm

Speaker Measurement

Overall Diameter (Without Grill)
6.4"x9.2" / 164x234mm
Overall Diameter (With Grill)
7"x9.9" / 180x252mm
Overall Depth (Without Grill)
3.9" / 100mm
Overall Depth (With Grill)
4.2" / 107mm
Front Mount Baffle Cutout
5.7"x8.6" / 144x218mm
Mounting Depth
3.4" / 86mm
Motor Diameter
4.7" / 120mm
