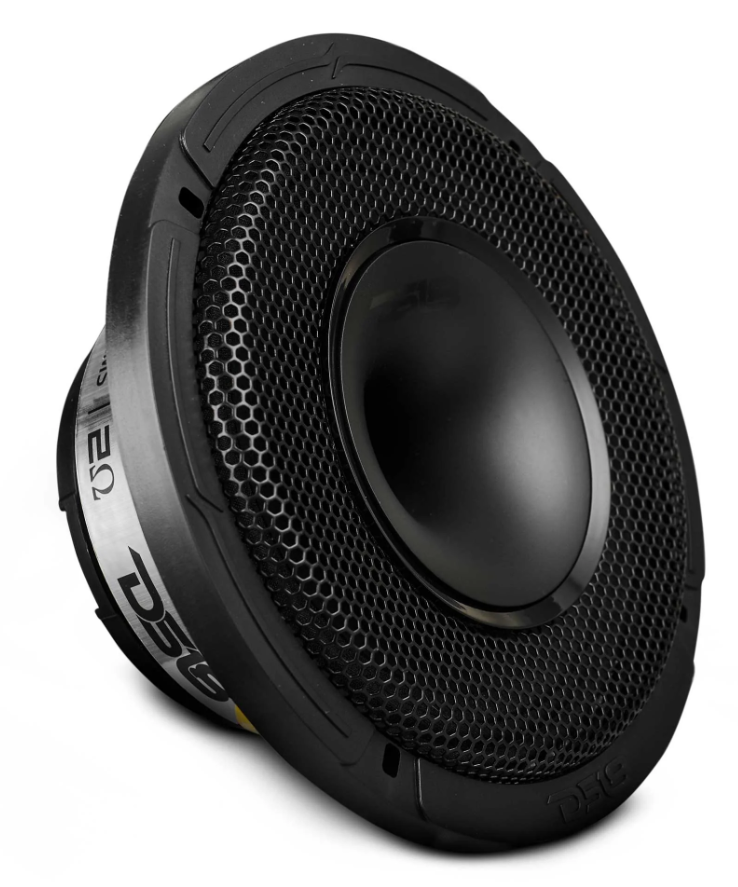

DS18 PRO-HY6.2MSL 6.5" Shallow Hybrid Mid-Range Loudspeaker with Driver 2 Ohm

Specifications

SKU
PRO-HY6.2MSL
Nominal Diameter
6.5" / 165.1mm
Nominal Impedance
2 Ohms
RMS Power Handling
150W
MAX Power Handling
300W
Sensitivity (1w/1m)
97dB
Frequency Response
120Hz-20Khz
Recommended HI Pass Crossover
140Hz
Number of Ways
2 ways
Pair or Single
Single
Grill Included
Yes

Woofer Specifications

Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Cone Material
Paper
Surround Material
Cloth
Basket Material
Steel
Basket Color/Finish
Black
Magnet Material
Ferrite
Magnet Weight
19.5 Oz

Thiele & Small Parameters

Equivalent Volume Vas
7L / 0.248ft3
Excursion (one way) Xmax
1.5mm
Free Air Resonance Fs
163Hz
Mechanical Factor Qms
7.488
Electrical Factor Qes
1.102
Total Factor Qts
0.96
Mechanical Mass Mms
2.87g
Mechanical Compliance Cms
0.333mm/N
BL Factor BL
2.287
Voice Coil Inductance Le
0.07041mH
Cone Area Sd
136.8 Cm2
DC Resistance Re
1.9 ohm
Mechanical Mass w/o air Mmd
20.7g

Driver Specifications

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Neodymium
Horn Diameter
3.15" / 80mm

Speaker Measurement

Overall Diameter (Without Grill)
6.55" / 167mm
Overall Diameter (With Grill)
6.93" / 176mm
Overall Depth (Without Grill)
3.26" / 83mm
Overall Depth (With Grill)
3.45" / 88mm
Front Mount Baffle Cutout
5.65" / 144mm
Mounting Depth
2.82" / 72mm
Motor Diameter
4.31" / 110mm
