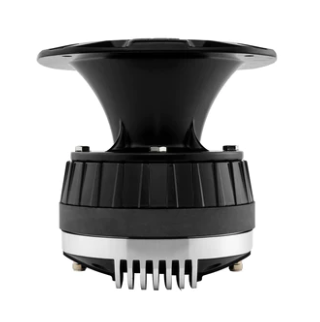

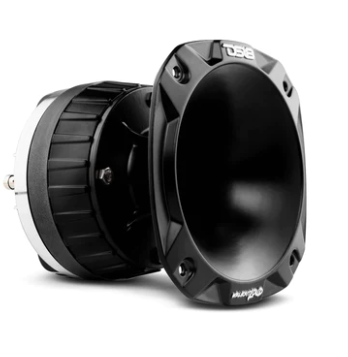

DS18 PRO-DKH1XS 2" Throat Bolt On Compression Driver 2" Throat Titanium Voice Coil and Horn 640 Watts
DS18 PRO-DKH1XS 2" Throat Bolt On Compression Driver 2" Throat Titanium Voice Coil and Horn 640 Watts
Regular price
$113.95
Regular price
Sale price
$113.95
Unit price
/
per
Shipping calculated at checkout.
SKU:PRO-DKH1XS
Couldn't load pickup availability
DS18 PRO-DKH1XS 2" Throat Bolt On Compression Driver 2" Throat Titanium Voice Coil and PRO-HA52/BK Horn 640 Watts 110 Db 8-ohm Mounting Depth 5.74"
| Throat Diameter | 2"/50.8mm |
| Installation Type | Bolt-on |
| Nominal Impedance | 8 Ohms |
| Program Power Handling | 320W |
| Peak Power Handling | 640W |
| AES Power Handling | 160W |
| Sensitivity | 111dB |
| Frequency Response | 630Hz-20KHz |
| Recommended HI Pass Crossover | 900 Hz |
| Motor | PRO-D1X |
| Voice Coil Diameter | 2.03"/51mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCA |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet Weight | 35oz |
| Measurements | |
| Overall Diameter | 7"/180mm |
| Overall Depth | 6" |
| Bolt Pattern/Type | 5.5mm hole-6.3"/161 mm Diameter |
| Mounting Depth | 5.7"/145 mm |
| Mounting Hole Diameter | 5.7"/145mm |
