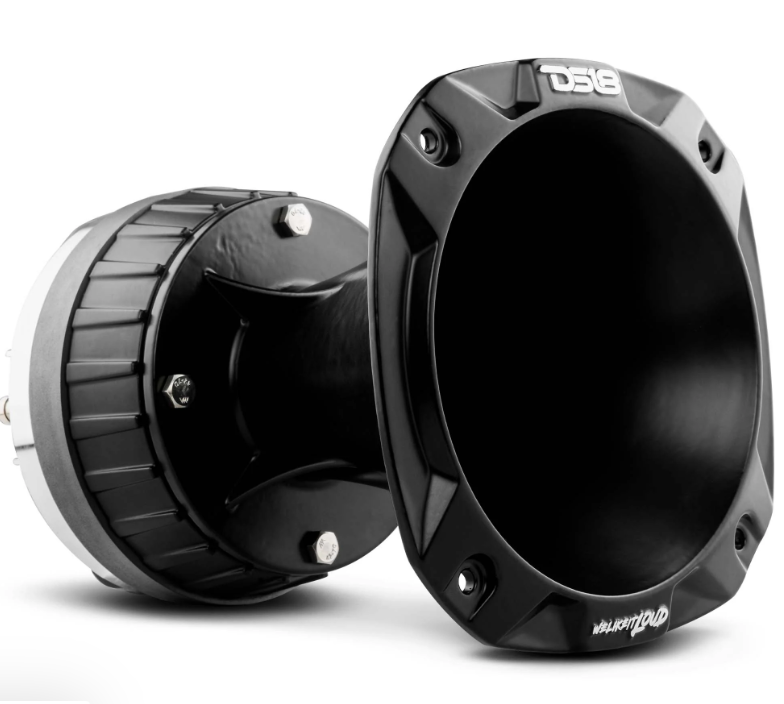

DS18 PRO-DKH1X 2" Driver with Spacer and Horn Kit 640W Max

Sold individually

SKU
PRO-DKH1X
Nominal Impedance
8 OHM
AES Power
160 Watts
Program Power Handling
320 Watts
Peak Power Handling
640 Watts
Sensitivity (1w/1m)
115 dB
Frequency Response
630Hz-20KHz
Recommended Hi Pass Crossover
900Hz

PRO-D1X - MOTOR

Voice Coil Diameter
2.03" / 51.5mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Ferrite
Magnet Weight
35 oz
Body Material
Aluminum

PRO-HA102/BK - HORN SPECIFICATIONS

Nominal Diameter
6.5" / 165mm
Throat Diameter
2" / 50.8mm
Sound Coverage
35° Rounded
Body Material
Aluminum
Color | Finish
Black Satin

MEASUREMENTS

Overall Diameter
6.37" / 162mm
Overall Depth
8.3" / 211mm
Mounting Depth
7.9" / 201.5mm
Mounting Hole Diameter
5.7" / 145mm
Bolt Pattern / Type
Ø 6.33" / 161mm x 4 - 0.21" / 5.5mm Hole
Product Weight
9 lbs
Product Dimensions
7 x 7 x 8.75
