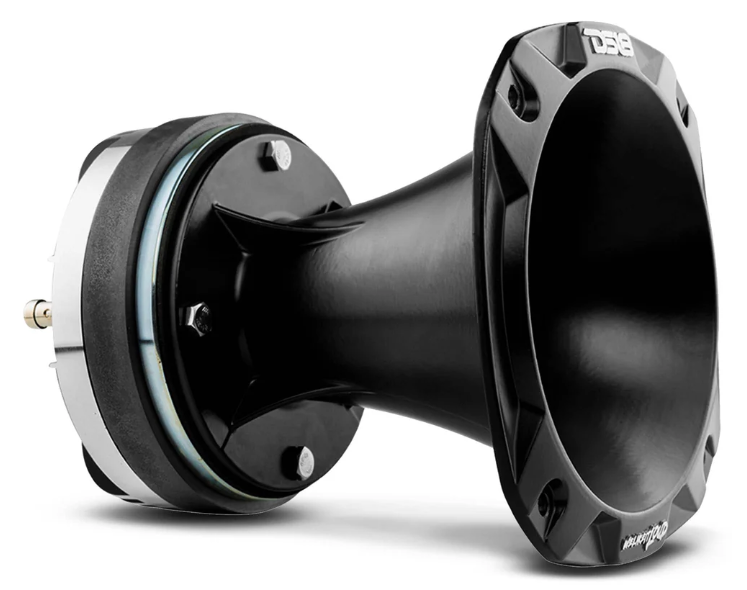

DS18 PRO-DKH1 2" Driver and Horn Kit 640W Max

SPECS

SKU
PRO-DKH1
Nominal Impedance
8 OHM
AES Power
200 Watts
Program Power Handling
320 Watts
Peak Power Handling
640 Watts
Sensitivity (1w/1m)
111 dB
Frequency Response
800Hz-18.5KHz
Recommended Hi Pass Crossover
900Hz

MOTOR

Voice Coil Diameter
2.03" / 51.5mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
35 oz
Body Material
Aluminum

HORN SPECIFICATIONS

Nominal Diameter
6.5" / 165mm
Throat Diameter
2" / 50.8mm
Sound Coverage
35° Rounded
Body Material
Aluminum
Color | Finish
Black

MEASUREMENTS

Overall Diameter
6.37" / 162mm
Overall Depth
7.5" / 191.3mm
Mounting Depth
7.18" / 182.5mm
Mounting Hole Diameter
5.7" / 145mm
Bolt Pattern / Type
Ø 6.33" / 161mm x 4 - 0.21" / 5.5mm Hole
Product Weight
8.5 lbs
Product Dimensions
7.0 x 7.0 x 8
