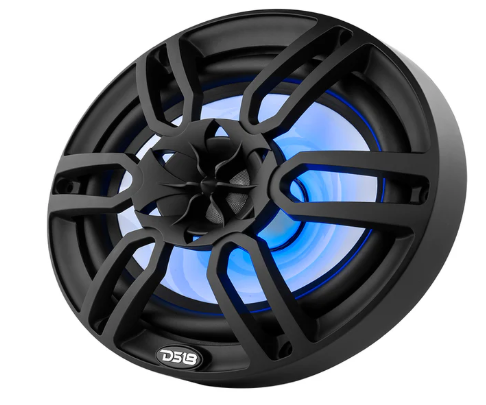

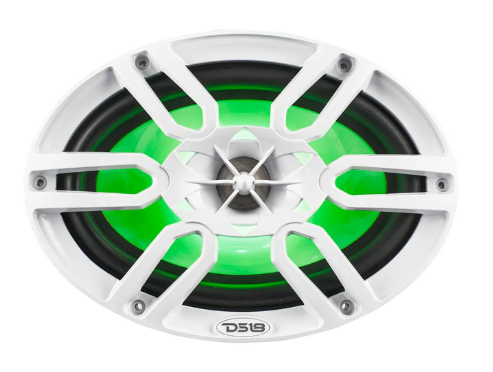

DS18 NXL-69 Marine 6x9" Speakers with LED Lights

SPECS

SKU
NXL-69/WH or NXL-69/BK
Nominal Diameter
6x9" / 152.4x228.6mm
Nominal Impedance
4 ohms
RMS Power Handing
125 watts
Maximum Power Handing
375 watts
Sensitivity (1w/1m)
92 dB
Frequency Response
40Hz-20KHz
Recommended Hi Pass Crossover
60Hz

SPECS

Voice Coil Diameter
1.4" / 35.5mm
Voice Coil Former Material
Kapton
Winding Material
SV
Basket Material
High Temp injection Molded composite whit UV protection coating
Magnet Weight
24 OZ +0.75 OZ

THIELE & SMALL PARAMETERS

Vas
51.43L / 1.8ft3
Xmax
6 mm
Fs
49 Hz
Qms
7.66
Qes
0.704
Qts
0.644
Re
3.1 OHM

MEASUREMENTS

Overall Diameter
7.4" x 10.2" / 189 x 260mm
Front Mount Baffle Cutout
8.6" x 5.9" / 220 x 150 mm
Mounting Depth
3.11" / 79 mm
Overall Depth
4.52" / 115 mm
Product Weight
10.5 lbs
Product Dimensions
17.75 x 12 x 5.5
