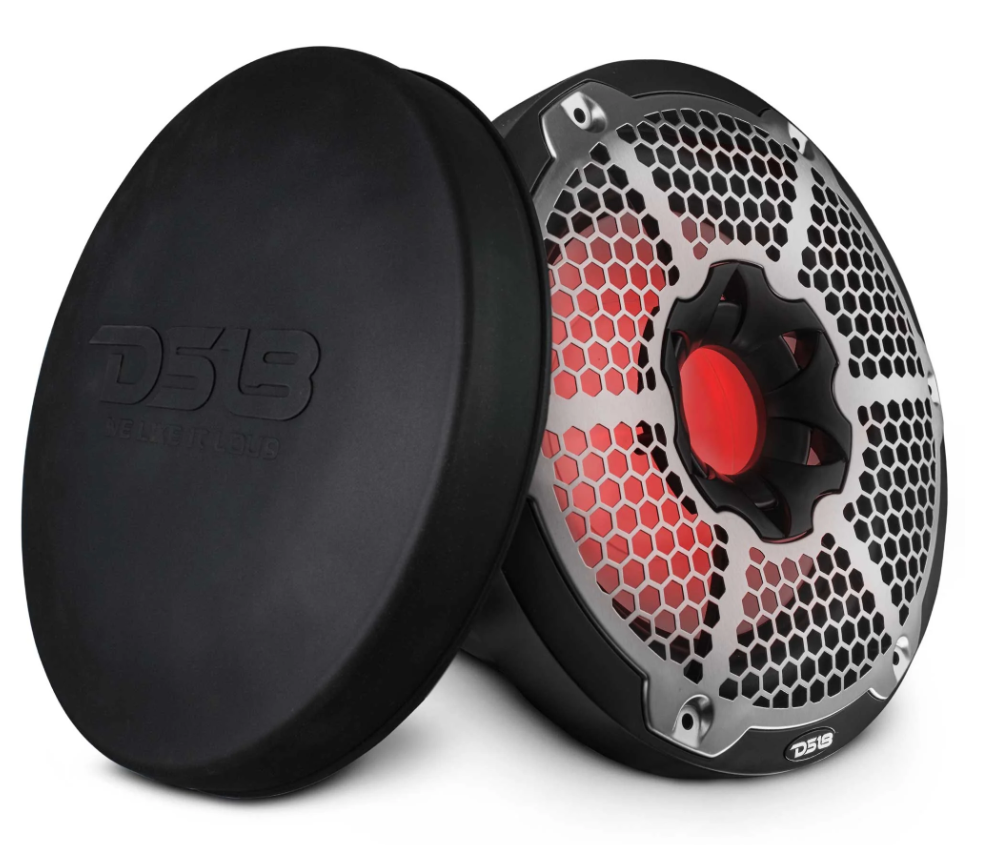

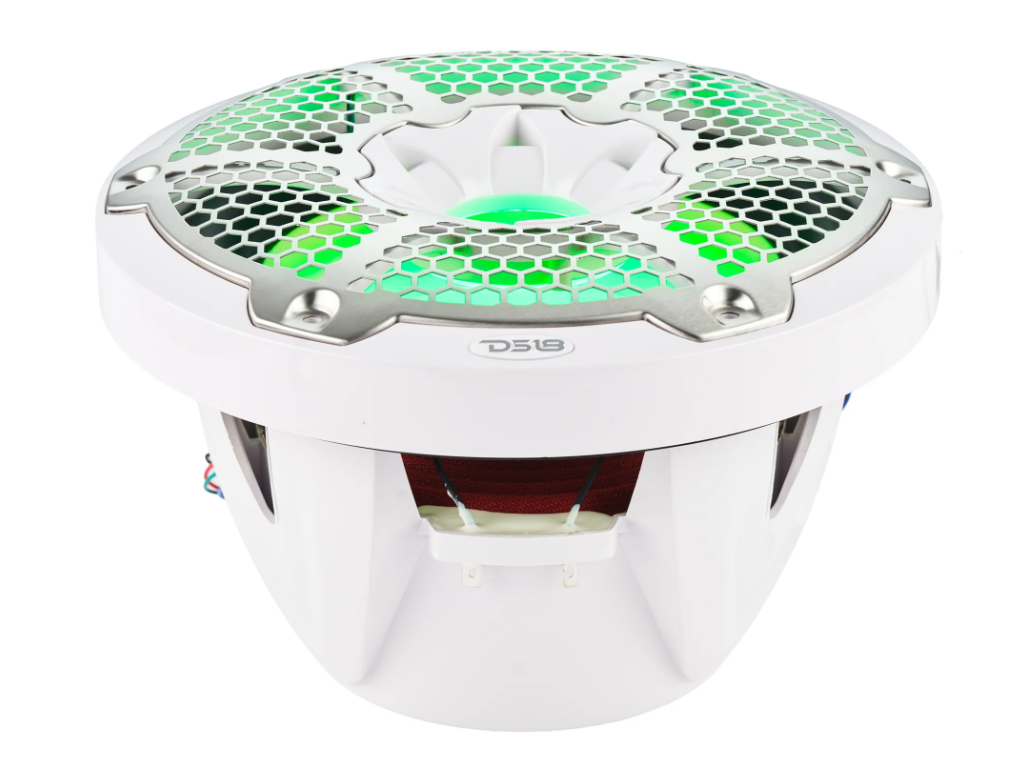

DS18 NXL-10SUB 10" Marine Subwoofer w RGB LED Lights -White or Black

SPECS

SKU
NXL-10SUB/WH or NXL-10SUB/BK
Nominal Diameter
10" / 254mm
Nominal Impedance
4 ohm
RMS Power Handing
300W
Maximum Power Handing
600W
Sensitivity (1w/1m)
89dB
Frequency Response
35-250Hz
Recommended Lo Pass Crossover
100Hz

SPECS

Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Basket Material
High Temp Injection Molded Composite with UV Protection coating
Magnet Weight
72 oz

THIELE & SMALL PARAMETERS

Vas
26.7L / 0.94ft3
Fs
45Hz
Qms
8.919
Qes
0.805
Qts
0.457
Re
3.65

MEASUREMENTS

Overall Diameter
10.76" / 273.3mm
Front Mount Baffle Cutout
8.78" / 223mm
Mounting Depth
5" / 127.5mm
Overall Depth
6.73" / 171mm
