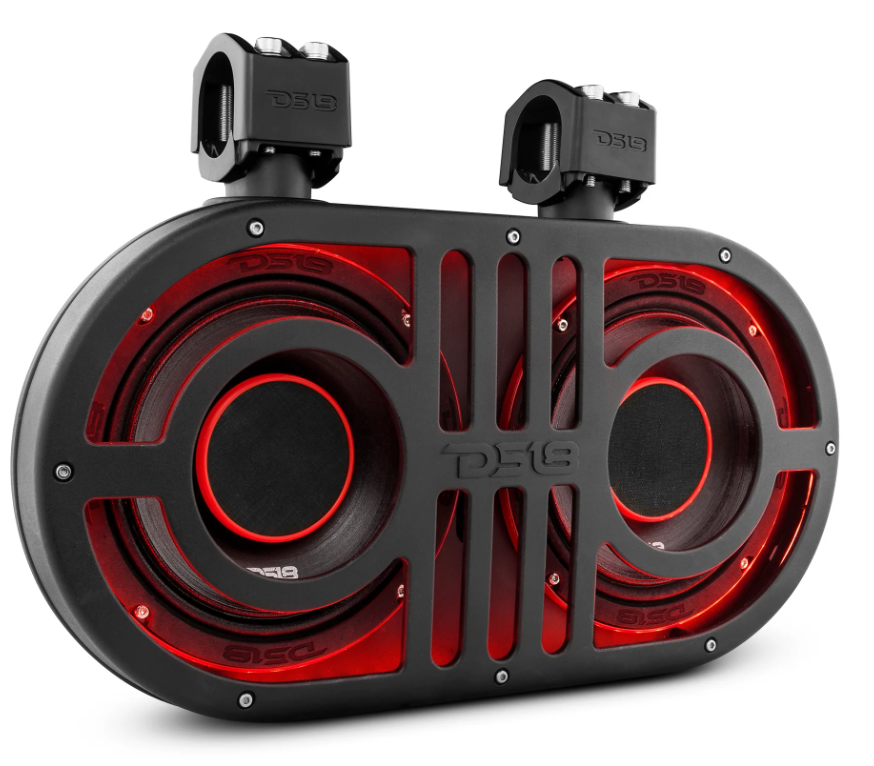

DS18 JVOCE8 Marine/Powersports Roll Cage Sound Bar System, 8" Speakers

SPECS

SKU
JVOCE8
Nominal Diameter
Dual 8" / 211mm
Nominal Impedance
4+4 Ohms
RMS Power Handling
2 x 250W
MAX Power Handling
2 x 500W
Sensitivity (1w/1m)
99dB
Frequency Response
60Hz-20KHz
Recommended HI Pass Crossover
80Hz

BODY/FEATURES

Enclosure Material
High density plastic molded with color injected
Marine Grade Type
IP65 + UV Protected
RGB LED
YES, Around the Grill
Grill Type
Plastic ABS injected
Clamps
2 x Die-Cast Flat Bracket for Jeep JL Roll Cage or universal fit, 2 x Tube Clamp Adjustable (2"~3") 360 Degree Rotation Mounting, Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware (Screws, Stop Washers, Hexagon wrench, Safety Rope, Threadlocker Glue)
Front Logo
Yes
Finish
Matte Black
Input Wire
Speaker x 2 (stereo configuration) + RGB Lights

WOOFER SPECS

Voice Coil Diameter
1.5" / 38.6mm
Cone Material
Waterproof Paper
Surround Material
Cloth
Basket Material
Aluminum
Magnet Material
Ferrite
Magnet Weight
27 Oz

DRIVER SPECS

Voice Coil Diameter
1" / 25.4mm
Type
High Compression Horn
Diaphragm Material
Titanium
Magnet Material
Neodymium
Crossover
6 dB/Oct Filter
Horn Diameter
3" / 76.2mm

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
10.048L
Excursion (one way) Xmax
9.2mm
Free Air Resonance Fs
135Hz
Total Factor Qts
1.011

ENCLOSURE MEASUREMENT
Overall Width
19.44" / 494mm
Overall Depth
6.41" / 163mm
Overall Height (without Clamp)
10.11" / 257mm
Gross Single Unit Weight (lb)
21.5
