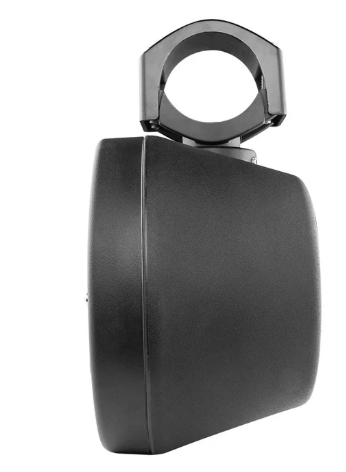

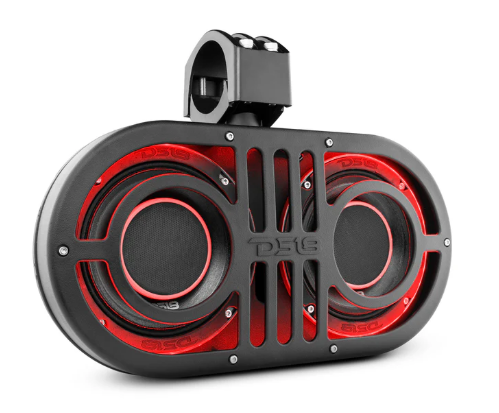

DS18 JVOCE Marine/Powersports Roll Cage Sound Bar System, 6.5" Speakers

SPECS

SKU
JVOCE
Nominal Diameter
Dual 6.5" / 165mm
Nominal Impedance
4+4 Ohms
RMS Power Handling
2 x 225W
MAX Power Handling
2 x 450W
Sensitivity (1w/1m)
98dB
Frequency Response
80Hz - 20Khz
Recommended HI Pass Crossover
100Hz

Body / Features

Enclosure Material
High density plastic molded with color injected
Marine Grade Type
IP65 + UV Protected
RGB LED
YES, Around the Grill
Grill Type
Plastic ABS injected
Pair
NO
Clamps
1 x Tube Clamp Adjustable (2"-3") 360 Degree Rotation Mounting, Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware (Screws, Stop Washers, Hexagon wrench, Safety Rope, Threadlocker Glue)
Front Logo
Yes
Finish
Matte Black
Input Wire
Speaker x 2 (stereo configuration) + RGB Lights

Woofer Specifications

Voice Coil Diameter
1.5" / 38.6mm
Cone Material
Waterproof Paper
Surround Material
Cloth
Basket Material
Aluminum
Magnet Material
Ferrite
Magnet Weight
27 Oz

Driver Specifications

Voice Coil Diameter
1" / 25.4mm
Type
High Compression Horn
Diaphragm Material
Titanium
Magnet Material
Neodymium
Crossover
6 dB/Oct Filter
Horn Diameter
3" / 76.2mm

Thiele & Small Parameters

Equivalent Volume Vas
2.2L
Excursion (one way) Xmax
9.2mm
Free Air Resonance Fs
199Hz
Total Factor Qts
1.214

Enclosure Measurement

Overall Width
16.22" / 412mm
Overall Depth
5.87" / 149mm
Overall Height (without Clamp)
8.35" / 212mm
