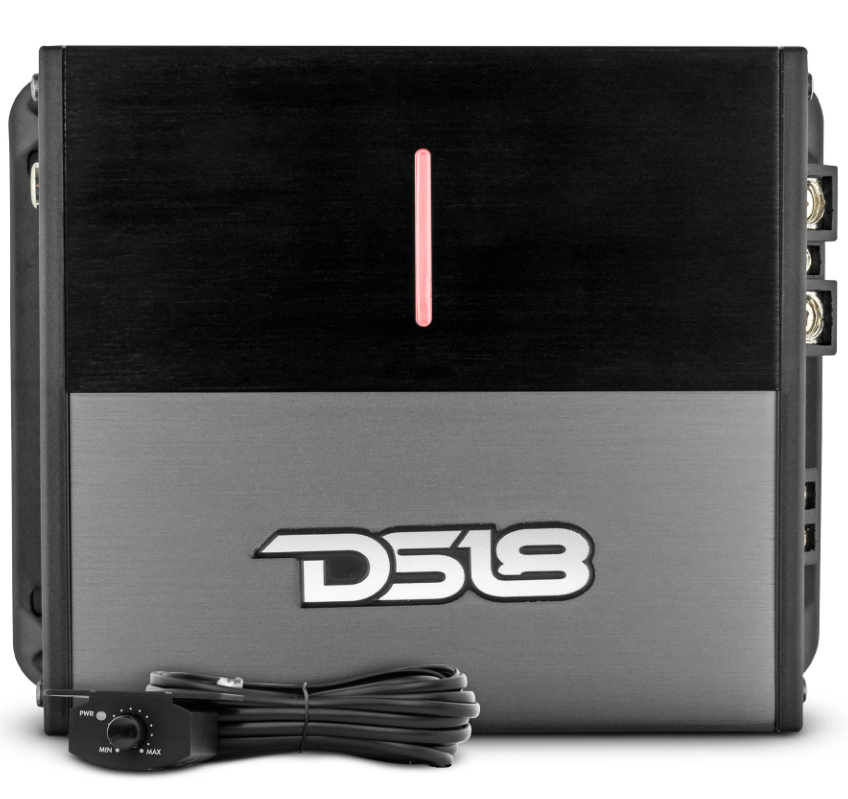

DS18 ION1200.1D 1-Channel Compact Amplifier

SPECS

SKU
ION1200.1D
Total Watts (Peak)
3600W
RMS Power @ 4 ohm
400W
RMS Power @ 2 ohm
800W
RMS Power @ 1 ohm
1200W
RMS Power @ 4 ohm Bridge
N/A

AUDIO

Frequency Response
10Hz-20KHz
Signal to Noise Ratio
>95dB
Efficiency @ 4 ohm
88%
Damping Factor
210
Input Impedance
27Kohms
Channel Separation
N/A
Total Harmonic Distortion (THD)
0.01%
Low Level Input Range
0.2-6V
High Level Input
Yes
Selectable X-Over
Band-Pass
X-Over Filter Range
HP: 15Hz-1KHz / LP: 40Hz-20KHz
Bass Boost Range
0~12dB
Bass Boost Frequency
45Hz

FEATURES

Amplifier Class
Digital
Amplifier Type
Full-Range Monoblock
Number of Channels
1
Minimum Impedance
1 Ohm
Led Indicator
Power / Protect / Clipping
Power Input Terminal Size
4 AWG
Fuse Size
100A (external)
Remote Level Control
Yes
Cooling Fan
No
Thermal Protection
Yes (90?C)
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color / Finish
Aluminum Black / Silver

EXTRA FEATURES

Hi-Level Speaker connector
Yes
Tiffany RCA Terminal
Yes
LED Clip Indicator
Yes
High Efficiency Micro Digital Design
Yes

MEASUREMENT

Overall Length
6.92" / 176mm
Overall Wide
4.72" / 120mm
Overall Height
2" / 52mm
Heatsink Length
5.62" / 143mm
