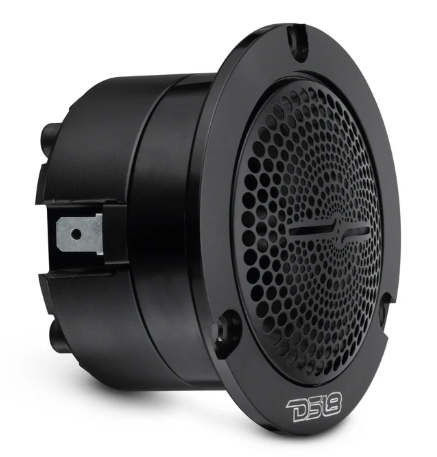

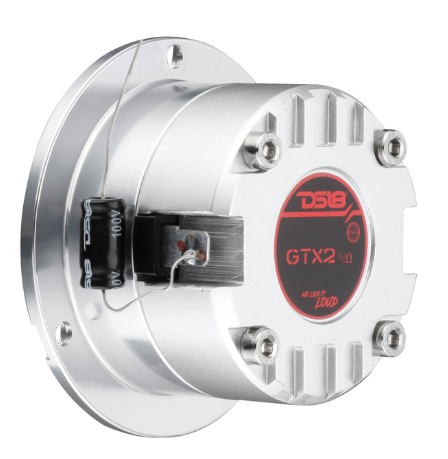

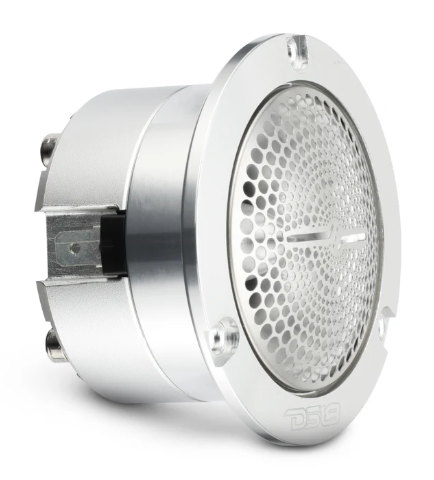

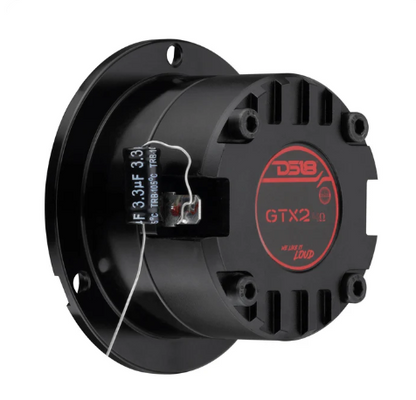

DS18 GTX2 3" Super Bullet Tweeter with Neodymium Magnet -Silver or Black

Specifications

Nominal Diameter
3" / 76mm
Nominal Impedance
4 Ohms
AES Power Handling
60W
Program Power Handling
120W
Peak Power Handling
240W
Sensitivity (1w/1m)
100dB
Frequency Response
650Hz-20KHz
Recommended Hi Pass Crossover
2KHz
Pair or Single
Single

Motor

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Neodymium
Magnet Size
38x14mm
Body Material
Aluminum

Measurement

Overall Diameter
2.9" / 74.5mm
Overall Depth
1.8" / 48mm
Front Mount Baffle Cutout
2.28" / 58mm
Mounting Depth
1.46" / 37mm
