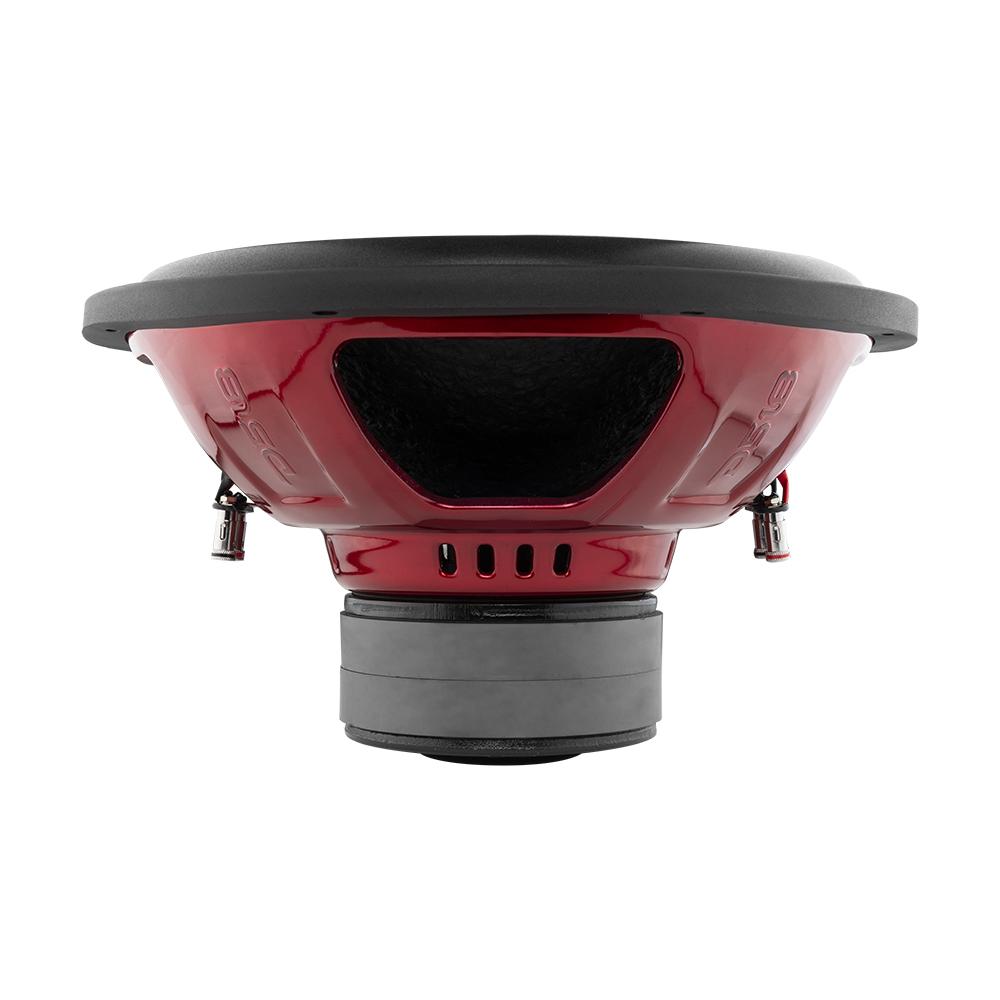

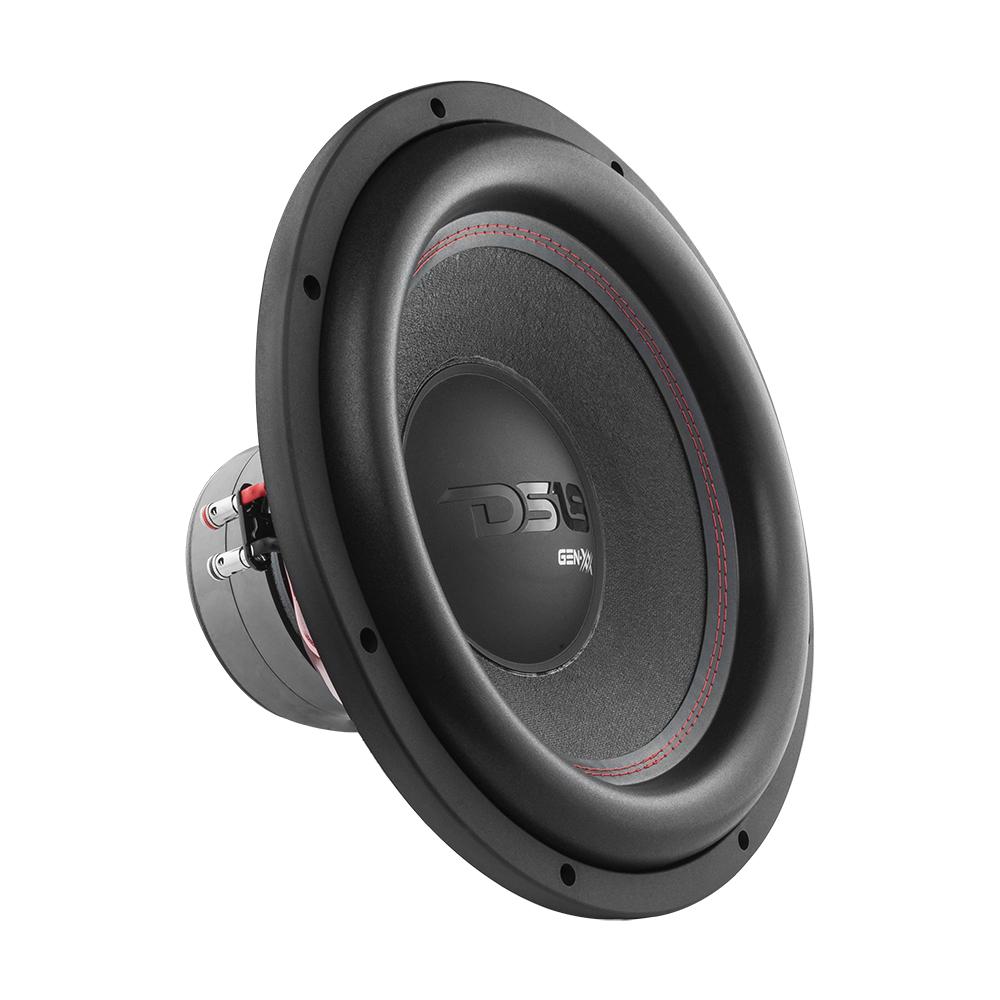

DS18 GEN-XX15.4DHE 15" Subwoofer 1200W Max

DS18 GEN-XX15.4DHE 15" Subwoofer 1200W Max

Regular price $174.95
Regular price Sale price $174.95
Sale Sold out
Shipping calculated at checkout.


Nominal Diameter 12
Nominal Impedance 4+4 ohms
RMS Power Handling 600W
MAX Power Handling 1200W
Sensitivity (1w/1m) 86.7 dB
Frequency Response 20-1.5KHz
Recommended Lo Pass Crossover 80 Hz
VC Diameter 2
VC Former Material Black Aluminum
Winding Material SV
Cone Material Paper
Dust Cap Material PPI
Surround Material Foam
Basket Material Steel
Basket Color/Finish Glossy Red
Magnet Material Ferrite
Magnet Weight 136 Oz
Displacement Volume 1.69L
Thiele & Small Parameters
Equivilant Vol Vas 56.436L
Excursion (one way) Xmax 25 mm
Free Air Resonance Fs 30.5 Hz
Mechanical Factor Qms 3.991
Electrical Factor Qes 0.532
Total Factor Qts 0.469
Moving Mass Mms 154.38g
Compliance Cms 0.175mm/N
Bl Factor BL 19.173N/A
VC Inductance Le 0.6741mH
Diaphragm Area Sd 475.29cm2
Dc Resistance Re 3.2+3.2 ohms
Efficiency Bandwidth Product EBP 57.3
Overall Diameter 12.44 / 316mm
Overall Depth 7.6" / 193mm
Front Mount Baffle Cutout 10.9 / 277mm
Mounting Depth 6.5" / 165mm
Motor Diameter

6.14/ 156 mm
