DS18 GEN-X112LD Loaded Single 12" Vented Box Bass Package
GEN-X112LDThis item is currently out of stock.

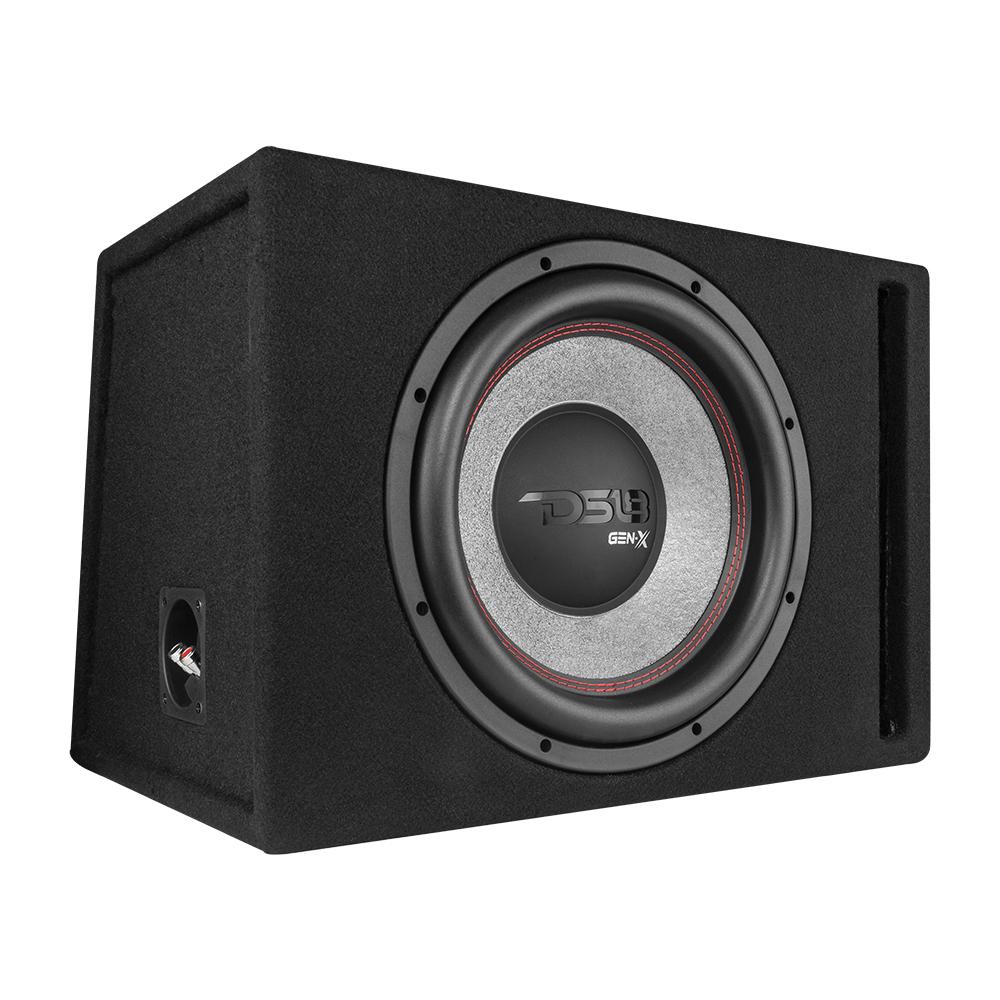

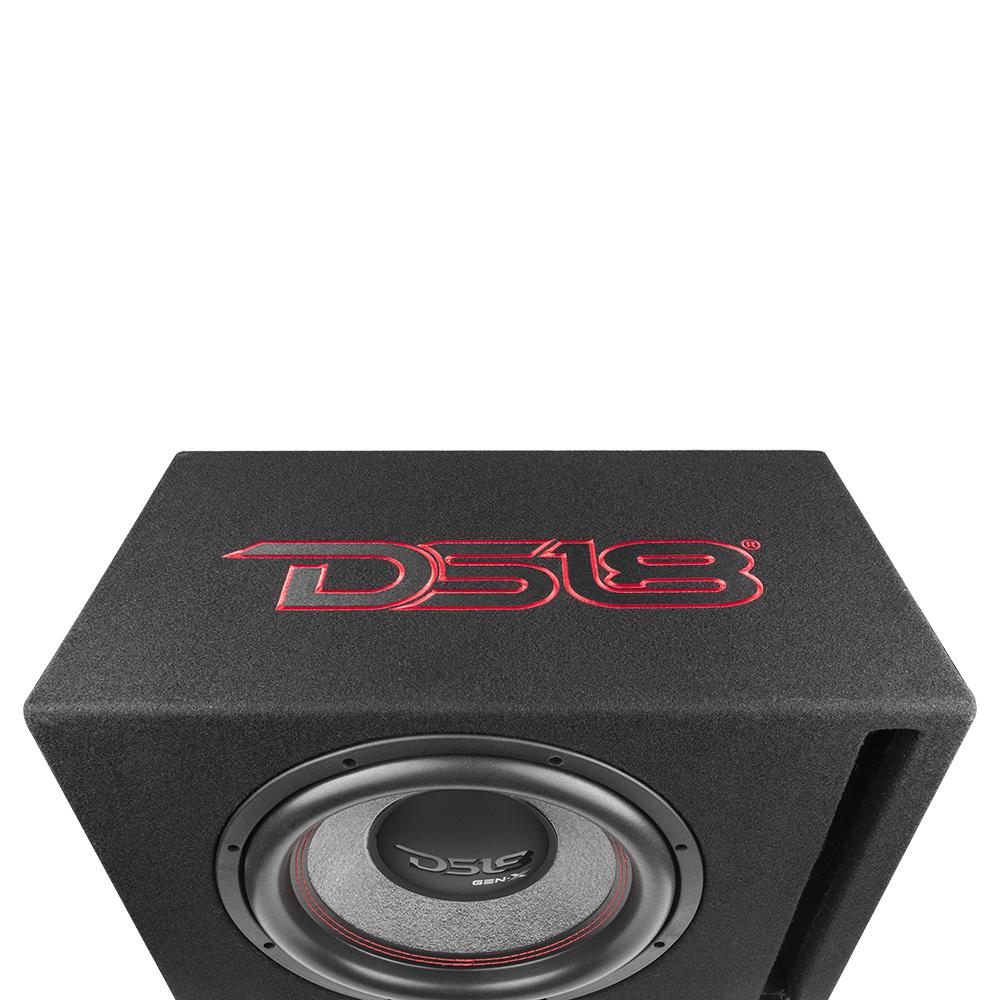

DS18 Loaded Ported 12" Box with GEN-X124D Subwoofer
| General | |
| Total Impedance | 2 ohm |
| Total RMS Power Handling | 450W |
| Total MAX Power Handling | 900W |
| Sensitivity (1w/1m) | 91dB |
| Frequency Response | 29 - 250Hz |
| Recommended Lo Pass Crossover | 120Hz |
| Speaker Specifications | |
| 1 x 12" GEN-X124D Subwoofer | |
| Voice Coil Diameter | 2" |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | SV |
| Cone Material | Paper & Fiber Glass |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 70 Oz |
| Box Specifications | |
| Internal Volume | 45.3L |
| Port Tune | 35Hz |
| Load Configuration | Parallel |
| Box Type | Front Ported |
| Box Material | 1/2" MDF |
| Finish Material | Vinyl |
| -3dB Dropping Point | 29Hz |
| Measurement | |
| Height | 13.78” / 350mm |
| Width | 19.68” / 500mm |
| Depth 1 | 11” / 280mm |
| Depth 2 | 14” / 356mm |
