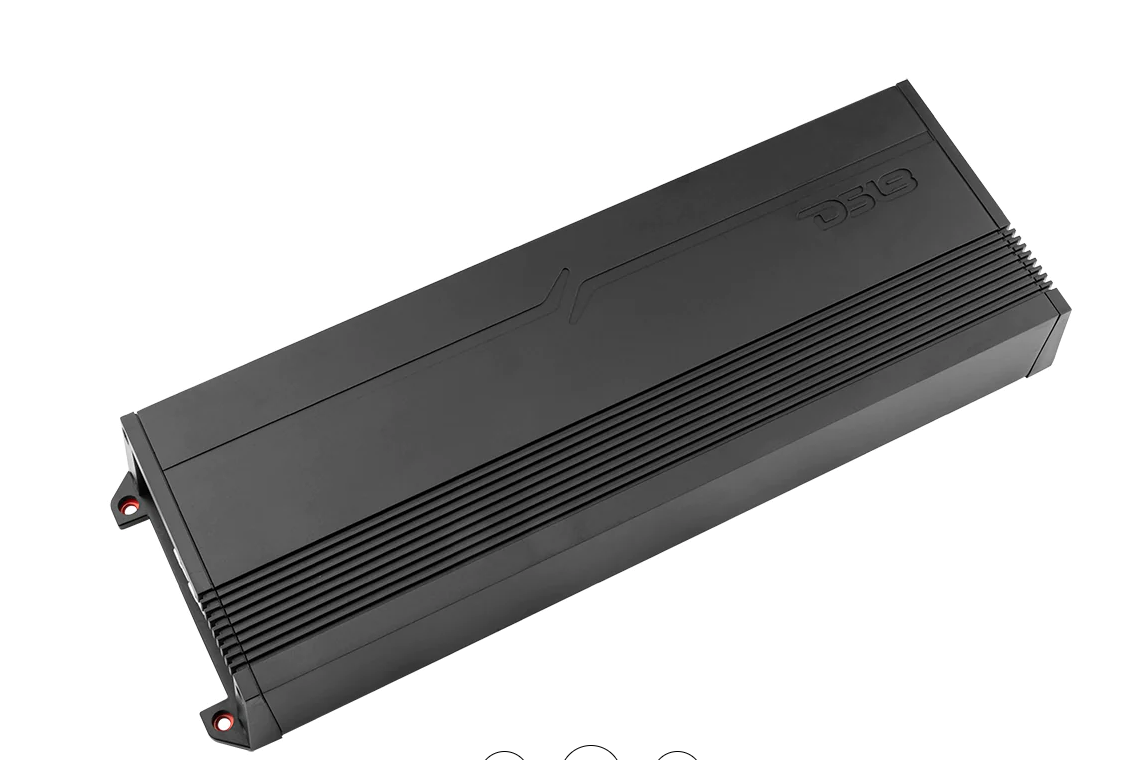

DS18 G8400.4D Class D Full Range 8400W 4-channel Amplifier

DS18 G8400.4D Class D Full Range 8400W 4-channel Amplifier

$549.95
$549.95
Sale Sold out
Shipping calculated at checkout.

G8400.4D
  • Digital Class D 4 Channel Amplifier
  • MAX Wattage: 8400W Peak
  • RMS Wattage: 2x1700Watts RMS @ 4 ohm bridge, 4x1000 Watts RMS @ 2 ohms, 4x700 Watts RMS @ 4 ohms
  • Frequency Response: 20Hz-20KHz
  • Signal to Noise Ratio: >90dB
  • Efficiency at 4 ohms: 80%
  • Damping Factor: 78
  • Input Impedance: 22K
  • Total Harmonic Distortion: 0.01%
  • Input Range: .25-6v

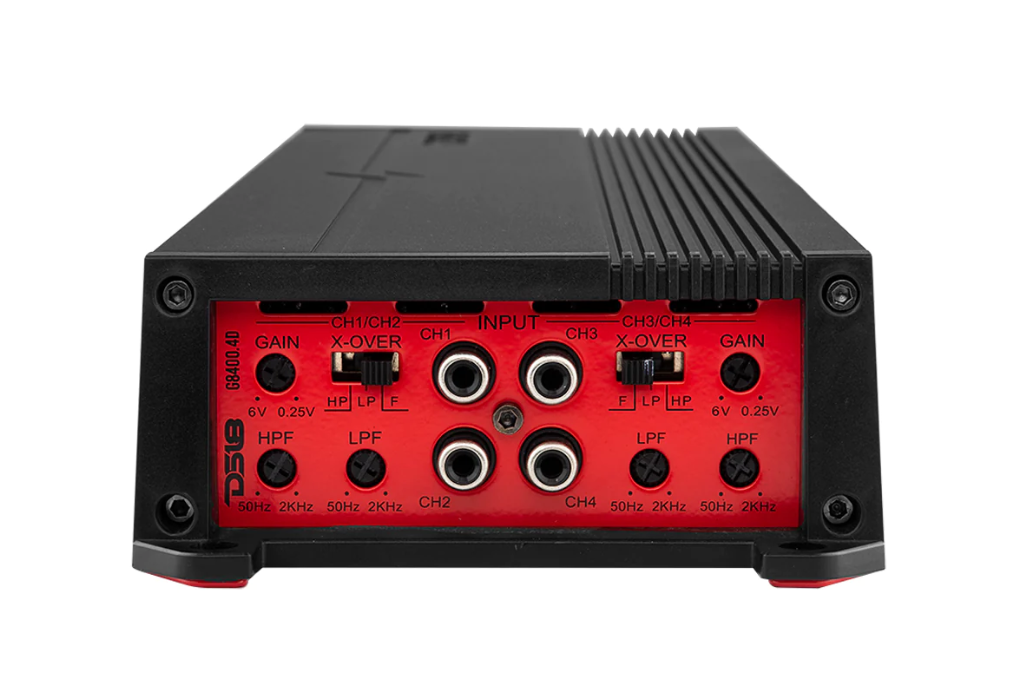

  • Selectable X-over: LPF, HPF. Flat
  • Power and Ground Terminal: 4 GA
  • Dimensions: 14.37"L x4.72"W x1.96"H
