DS18

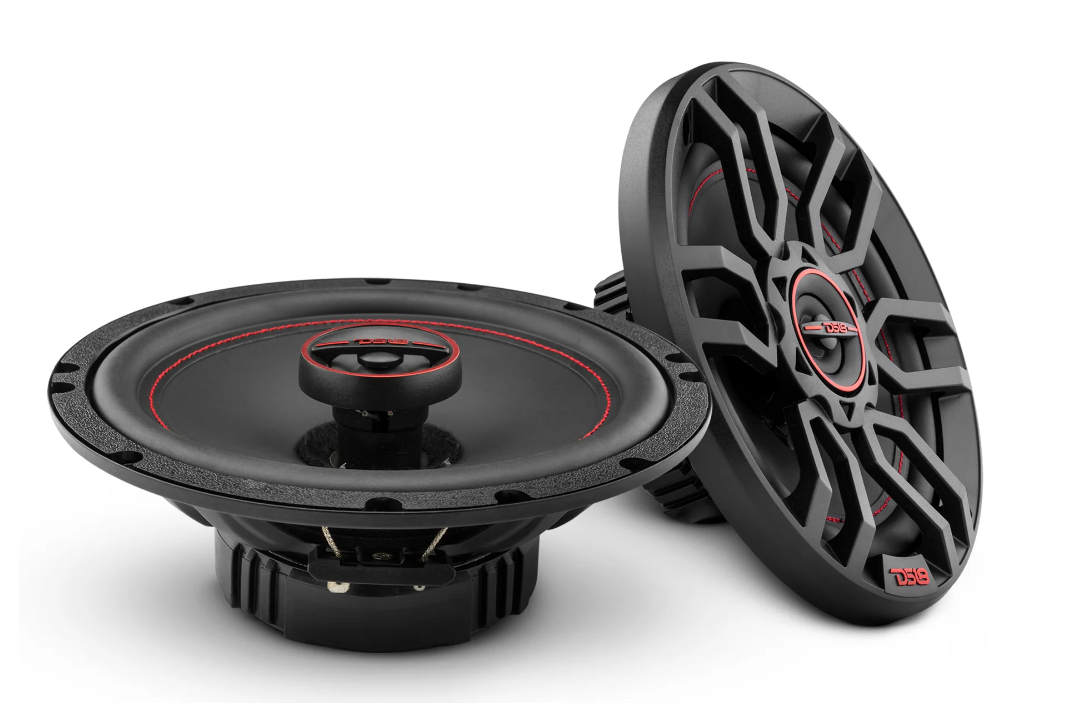

DS18 G6.5Xi 2-Way 6.5" Coax Speakers
DS18 G6.5Xi 2-Way 6.5" Coax Speakers
Regular price
$57.95
Regular price
Sale price
$57.95
Unit price
/
per
Shipping calculated at checkout.
SKU:G6.5Xi
Couldn't load pickup availability
| GENERAL SPECIFICATIONS | |
| Nominal Diameter | 6.5" / 165mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 50W |
| MAX Power Handling | 150W |
| Sensitivity (1w/1m) | 86dB |
| Frequency Response | 35Hz-20KHz |
| Recommended HI Pass Crossover | 60Hz |
| Number of ways | 2 |
| Pair or Single | Pair |
| Grill Included | Yes |
| WOOFER SPECIFICATIONS | |
| Voice Coil Diameter | 1" / 25.5mm |
| Voice Coil Former Material | ASV |
| Winding Material | EISV |
| Cone Material | Paper |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color/Finish | Black Matte |
| Magnet Material | Barium Ferrite |
| Magnet Weight | 9.87oz / 280g |
| TWEETER SPECIFICATIONS | |
| Nominal Diameter | 1" / 25.5mm |
| Voice Coil Diameter | 0.5" / 13.25mm |
| Voice Coil Former Material | ASV |
| Winding Material | EISVM |
| Diaphragm Material | Mylar |
| Magnet Material | Neodymium |
| Magnet Weight | 1.8g |
| SPEAKERS MEASUREMENT | |
| Overall Diameter | 6.5" / 165mm |
| Overall Depth | 2.65" / 67.3mm |
| Overall Diameter (With Grill) | 7" / 179mm |
| Overall Depth (With Grill) | 3" / 76.4mm |
| Front Mount Baffle Cutout | 5.6" / 142mm |
| Mounting Depth | 2.15" / 54.5mm |
| Motor Diameter | 3.4" / 86mm |
| Tweeter Protrusion | 0.5" / 12.8mm |
Sold in pairs
