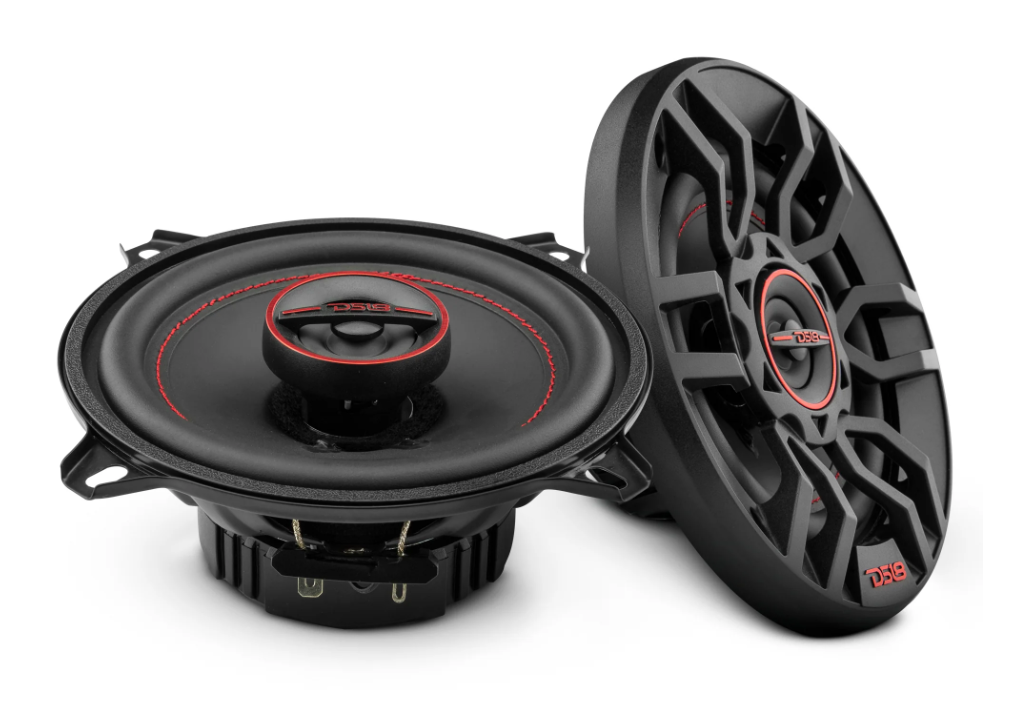

DS18 G5.25Xi 2-Way 5.25" Coax Speakers

SPECS

SKU
G5.25XI
Nominal Diameter
5.25" / 133mm
Nominal Impedance
4 Ohms
RMS Power Handling
45W
Maximum Power Handling
135W
Sensitivity (1w/1m)
84dB
Frequency Response
50Hz-20KHz
Recommended HI Pass Crossover
80Hz
Number of ways
2
Pair or single
Pair
Grill Included
Yes

WOOFER SPECS

Voice Coil Diameter
1" / 25.5mm
Voice Coil Former Material
ASV
Winding Material
EISV
Cone Material
Paper
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Black Matte
Magnet Material
Barium Ferrite
Magnet Weight
6.3Oz / 180g

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
3.66L / 0.129ft3
Excursion (one way) Xmax
2.2mm
Free Air Resonance Fs
86Hz
Mechanical Factor Qms
3.5
Electrical Factor Qes
1.63
Total Factor Qts
1.1
Moving Mass Mms
9.15g
Compliance Cms
330mm/N
Bl Factor Bl
3.4
Voice Coil Inductance Le
151uH
Cone Area Sd
84.5cm2
DC Resistance Re
3.7 Ohms
Mechanical Mass w/o air Mmd
8.3g

TWEETER SPECS

Nominal Diameter
1" / 25.5mm
Voice Coil Diameter
0.5" / 13.25mm
Voice Coil Former Material
ASV
Winding Material
EISVM
Diaphragm Material
Mylar
Magnet Material
Neodymium
Magnet Weight
1.8g

MEASUREMENTS

Overall Diameter
5.13" / 130.4mm
Overall Depth
2.47" / 62.8mm
Overall Diameter with Grill
6.38" / 162mm
Overall Depth with Grill
2.75" / 69.8mm
