DS18

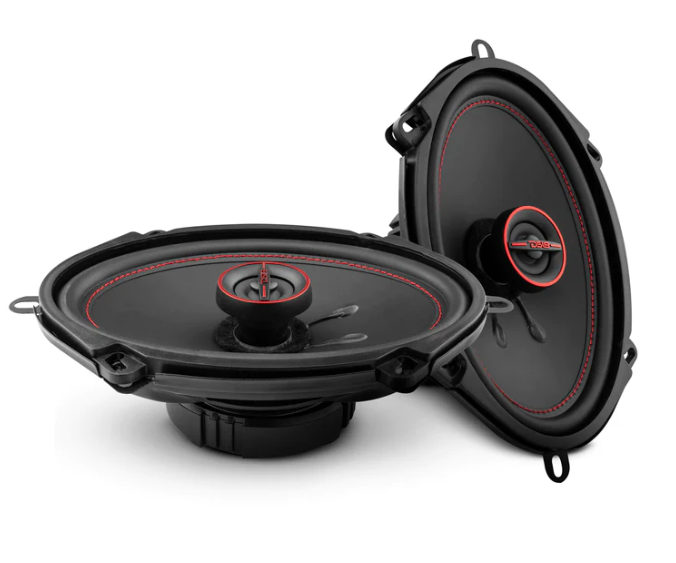

DS18 G5.7Xi 2-Way 5x7" Coax Speakers

DS18 G5.7Xi 2-Way 5x7" Coax Speakers

$47.95
$47.95
Sale Sold out
Shipping calculated at checkout.

G5.7Xi
GENERAL SPECIFICATIONS
Nominal Diameter  5X7" / 127x177mm
Nominal Impedance  4 Ohms
RMS Power Handling  50W
MAX Power Handling  150W
Sensitivity (1w/1m)  85dB
Frequency Response 40Hz-20KHz
Recommended HI Pass Crossover 70Hz
Number of ways 2
Pair or Single Pair
Grill Included No
WOOFER SPECIFICATIONS
Voice Coil Diameter 1" / 25.5mm
Voice Coil Former Material  ASV
Winding Material  EISV
Cone Material Paper
Surround Material Rubber
Basket Material  Steel
Basket Color/Finish Black Matte
Magnet Material Barium Ferrite
Magnet Weight 7.8Oz / 221g
TWEETER SPECIFICATIONS
Nominal Diameter 1" / 25.5mm
Voice Coil Diameter 0.5" / 13.25mm
Voice Coil Former Material  ASV
Winding Material  EISVM
Diaphragm Material Mylar
Magnet Material Neodymium
Magnet Weight 1.8g
SPEAKERS MEASUREMENT
Overall Diameter 5.57"x7.6" / 141.5x193mm
Overall Depth  2.63" / 66.8mm
Overall Diameter (With Grill) N/A
Overall Depth (With Grill) N/A
Front Mount Baffle Cutout 4.9"x7" / 126x180mm
Mounting Depth 2.13" / 54mm
Motor Diameter 3.4" / 86mm
Tweeter Protrusion  0.5" / 12.8mm

Sold in pairs
