DS18

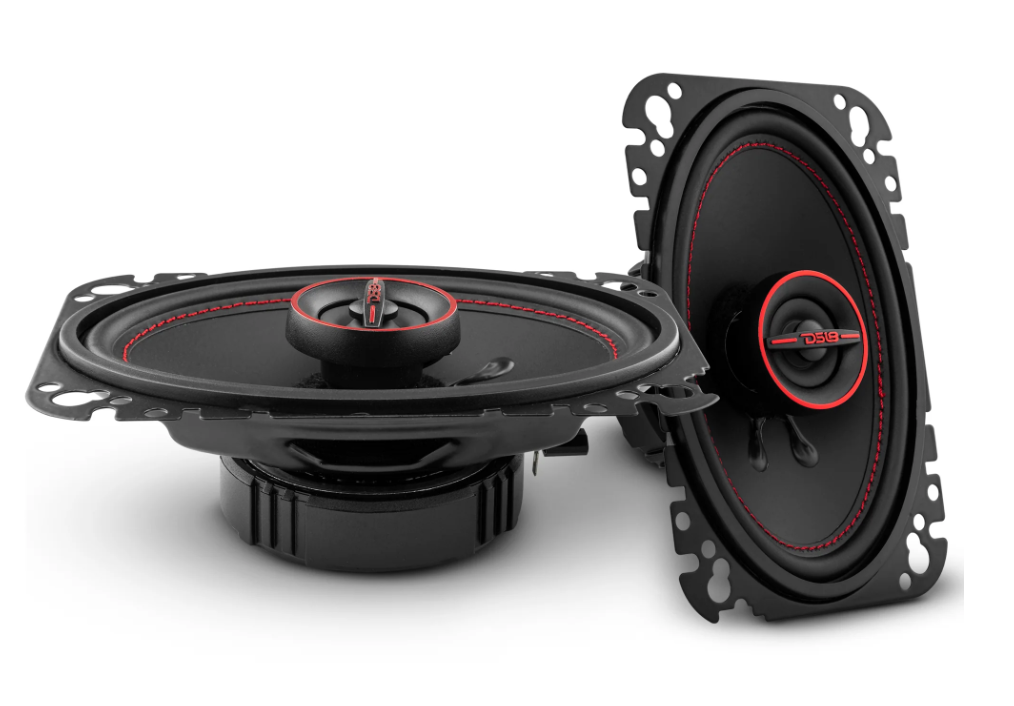

DS18 GX4.6Xi 2-Way 4x6" Coax Speakers

DS18 GX4.6Xi 2-Way 4x6" Coax Speakers

Regular price $41.95
Regular price Sale price $41.95
Sale Sold out
Shipping calculated at checkout.

SKU:G4.6Xi

G4.6XI
Nominal Diameter
4x6" / 101x152mm
Nominal Impedance
4 Ohms
RMS Power Handling
45W
Maximum Power Handling
135W
Sensitivity (1w/1m)
84dB
Frequency Response
45Hz-20KHz
Recommended HI Pass Crossover
80Hz
Number of ways
2
Pair or single
Pair
Grill Included
No


WOOFER SPECS

Voice Coil Diameter
1" / 25.5mm
Voice Coil Former Material
ASV
Winding Material
EISV
Cone Material
Paper
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Black Matte
Magnet Material
Barium Ferrite
Magnet Weight
6.3Oz / 180g


THIELE & SMALL PARAMETERS

Equivalent Volume Vas
1.8L / 0.063ft3
Excursion (one way) Xmax
2.2mm
Free Air Resonance Fs
115Hz
Mechanical Factor Qms
4.3
Electrical Factor Qes
2.3
Total Factor Qts
1.5
Moving Mass Mms
9.4g
Compliance Cms
195mm/N
Bl Factor Bl
3.1
Voice Coil Inductance Le
151uH
Cone Area Sd
84.3cm2
DC Resistance Re
3.7 Ohms
Moving Mass without Air Mmd
8.5g


TWEETER SPECS

Nominal Diameter
1" / 25.5mm
Voice Coil Diameter
0.5" / 13.25mm
Voice Coil Former Material
ASV
Winding Material
EISVM
Diaphragm Material
Mylar
Magnet Material
Neodymium
Magnet Weight
1.8g


MEASUREMENTS

Overall Diameter
4" x 6.1" / 102 x 155mm
Overall Depth
2.18" / 55.3mm
Front Mount Baffle Cutout
3.6" x 5.94" / 93 x 151mm
Mounting Depth
1.7" / 43mm
