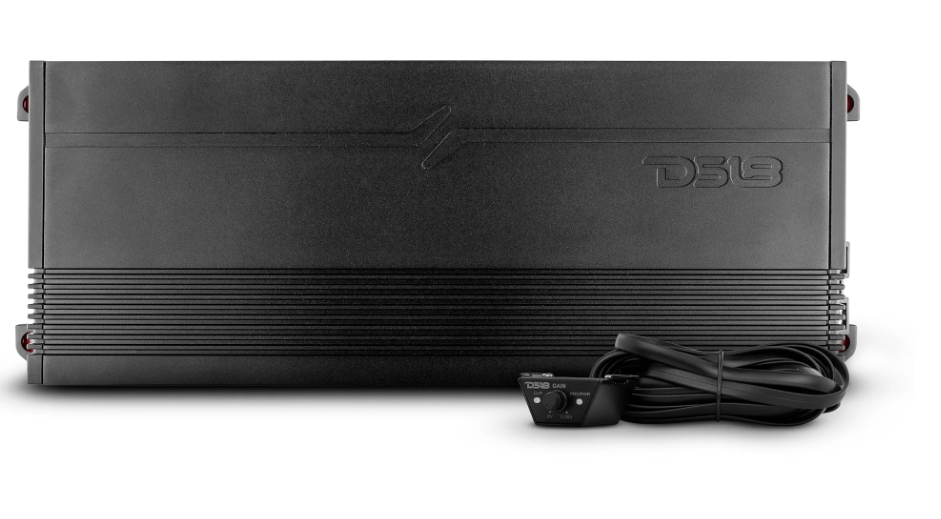

DS18 G4000.5D Class D Full Range 4000W 5-channel Amplifier
DS18 G4000.5D Class D Full Range 4000W 5-channel Amplifier
SKU:G4000.5D
G4000.5D
- 5 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 4 x 130 Watts @ 4 Ohm + 1 x 900 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Crossover/ Bass Control Knob
POWER
Total Watts (Peak)
4000W
Rms Power @ 4 OHM
4 x 130W / SUB: 300W
Rms Power @ 2 OHM
4 x 220W / SUB: 600W
Rms Power @ 1 OHM
SUB: 900W
Rms Power @ 4 OHM Bridge
2 x 420W
AUDIO
Frequency Response
20Hz-20Khz
Signal To Noise Ratio
>90 dB
Efficiency @ 4 OHM
83%
Damping Factor
78
Input Impedance
22 K
Channel Separation
55 dB
Total Harmonic Distortion (THD)
0.01%
Low Level Input Range
0.25 - 6 V
High Level Input
No
Selectable X-over
HPF/LPF
X-over Filter Range
HPF:10-250Hz / LPF:50-250Hz
Bass Boost Range
0-12dB
Bass Boost Frequency
Fixed @ 45Hz
Infrasonic Filter
10-50Hz
FEATURES
Amplifier Class
Digital (D)
Amplifier Type
5CH Full Range
Number Of Channels
5 Ch
Minimum Impedance
2ohm St / 4ohm Bridge (Puente) / 1ohm Sub
Led Indicator
Power | Protection | Clip /
Power Input Terminal Size
4 GA
Fuse Size
External / 160A
Remote Level Control
Yes
Thermal Protection
Yes
Over-Load Protection
Yes
Dc Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color | Finish
Matte Black
MEASUREMENT
Overall Length
12.8" / 325mm
Overall Wide
4.72" / 120mm
Overall Height
1.96" / 50mm
Heatsink Length
11.02" / 280mm
Gross Single Unit Weight
2.2Kg
EXTRA FEATURE
Input Selector
2/4/5 ch
