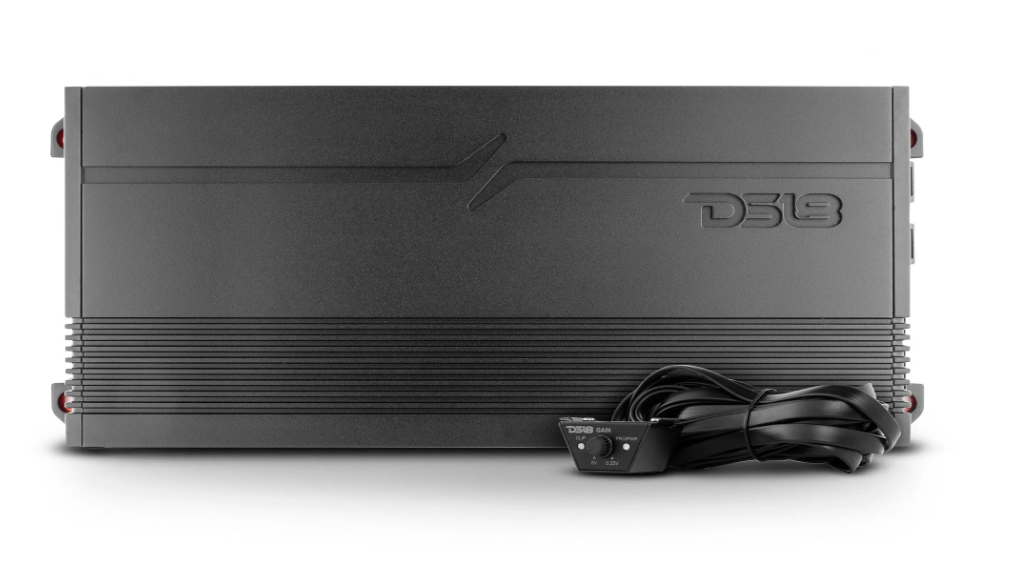

G3600.1D
Class
D
Amplifier Type
Monoblock Subwoofer
Channels
1
Peak Power
3600W
RMS Power @ 4 Ohm/14.4V
500W
RMS Power @ 2 Ohm/14.4V
900W
RMS Power @ 1 Ohm/14.4V
1200W
Minimum Impedance
1 Ohm
Operation Voltage
9 - 15V

SPECS

Frequency Response
10Hz - 500Hz
Signal/Noise Ratio
>93dB
Low Pass Filter
35Hz - 250Hz
High Pass Filter
N/A
Subsonic
Yes
Subsonic Frequency
10Hz - 50Hz
Efficiency @ 4 Ohm
90%
Damping Factor
45
THD %
0.0014
Input Sensitivity
0.25V - 6V
X-Over Filter Range
35 - 250 Hz
Bass Boost Range
0 - 9dB
Bass Boost Frequency
45Hz
Phase Selector
NO

SPECS

High Level Input
Yes
Selectable X-Over
Fixed LPF
Led Indicator
Power | Protection | Clip
Voltage Input Protection
Yes
Clipping Protection
Yes
Thermal Protection
Yes
Speaker Output Size
8GA
Power Input Size
4GA
Fuse Rating
120A
Remote Level Control
Yes
Body Color / Finish
Matte Black

MEASUREMENTS

Product Weight (lb)
5.5
Product Dimensions L x W x H (Inches)
14.25 x 7.25 x 3.25
M/C Weight (lb)
33.5
M/C Dimensions L x W x H (Inches)
15.25 x 15.25 x 10.75
