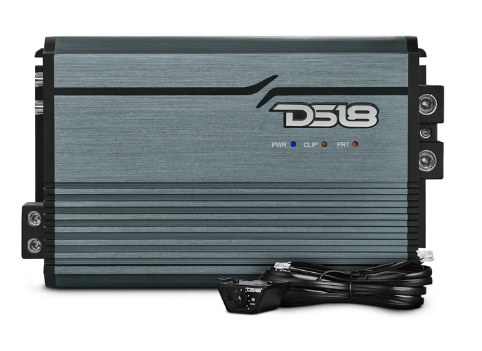

DS18 FRP-2.5K Class D Full Range 2500W RMS 1-channel Amplifier

SPECS

SKU
FRP-2.5K/BL
RMS Power @ 4 ohms
700W
RMS Power @ 2 ohms
1300W
RMS Power @ 1 ohm
2500W
MAX Power @ 1 ohm (Burst)
2800W

AUDIO

Frequency Response
10Hz-20KHz
Signal to Noise Ratio
83dB
Efficiency @ 4ohm
85.6%
Damping Factor
90
Input Impedance
10KΩ
Total Harmonic Distortion (THD)
0.5%
Low Level Input Range
400mv-3.6V
High Level Input
No
Selectable X-Over
Fixed Band-Pass
X-Over Filter Range
HP: 10Hz-2KHz / LP: 40Hz-20KHz
Bass Boost Range
0-12dB
Bass Boost Frequency
50Hz
Phase Selector
No

FEATURES

Amplifier Class
Digital
Amplifier Type
Full-Range Monoblock
Number of Channels
1CH
Minimum Impedance
1Ω
Led Indicator
Power / Protect / Clipping
Power Input Terminal Size
0GA
Fuse Size (Recommended)
200A
Remote Level Control
Yes (Volmeter Optional)
Cooling Fan
Yes (Smart Cooling x 2)
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection

Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color / Finish
Blue / Red / Titanium
Compact Size to Easy Installation for Any Applications
Yes
Stable/Reliable Four Layers Traces PCB Design
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Tiffany RCA Terminal
Yes
LED Clip Indicator
Yes
Metal Knobs with Click Steps
Yes
Remote Level Control with Clip Indicator
(Included)
Remote Level Control with Clip Indicator and Voltmeter
(Optional)

MEASUREMENT

Overall Length
8.85" / 225mm
Overall Width
5.5" / 140mm
Overall Height
2.36" / 60mm
Heatsink Length
7.6" / 193mm
Gross Single Unit Weight
2.1kg
